Tail Lamp Bulb Replacement (Terrain) Lighting Exterior Lighting Tail Lamp

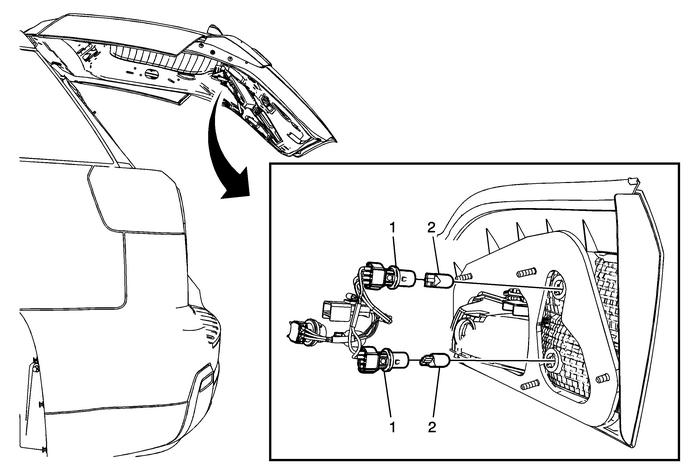

Tail Lamp Bulb Replacement

Callout

Component Name

Preliminary Procedure

Remove the tail lamp applique. Refer toTail Lamp Applique Replacement.

1

Auxiliary Tail Lamp Bulb Socket (Qty-:2)

Procedure

Warning:When working with any type of glass or sheet metal withexposed or rough edges, wear approved safety glasses and gloves inorder to reduce the chance of personal injury.

Disengage the auxiliary tail lamp bulb socket from the taillamp applique by turning the socket counterclockwise a quarterturn.

2

Auxiliary Tail Lamp Bulb (Qty:-2)

Tip:Pull the bulb straight out of the bulb sockets.

Tail Lamp Bulb Replacement Lighting Exterior Lighting Tail Lamp
Tail Lamp Bulb ReplacementCalloutComponent NamePreliminary ProcedureRemove either the Left or Right tail lamp assembly. Refer toTail Lamp Replacement.1Tail Lamp Bulb SocketWarning:Refer toHalogen Bulb ...

Tail Lamp Replacement (Terrain) Lighting Exterior Lighting Tail Lamp
Tail Lamp ReplacementCalloutComponent NamePreliminary ProcedureOpen and support the liftgate assembly.1Tail Lamp Access Hole Cover (Qty:-2)Tip:Use a small flat bladed tool to aid in the removal of the ...
