Preliminary Procedure Raise and support the vehicle. Refer toLifting and Jacking the Vehicle. | |

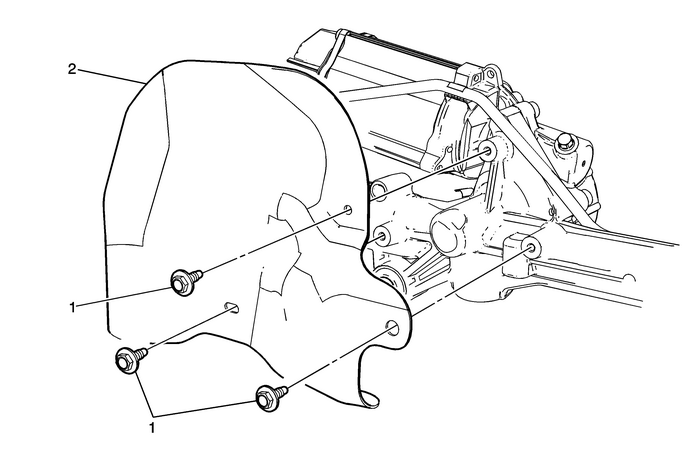

1 | Steering Gear Heat Shield Bolt (Qty:-3) Caution:Refer toFastener Caution. Tighten9-Y(80-lb-in) |
2 | Steering Gear Heat Shield |
