Headlamp Automatic Control Ambient Light Sensor Replacement Lighting Exterior Lighting Head Lamp

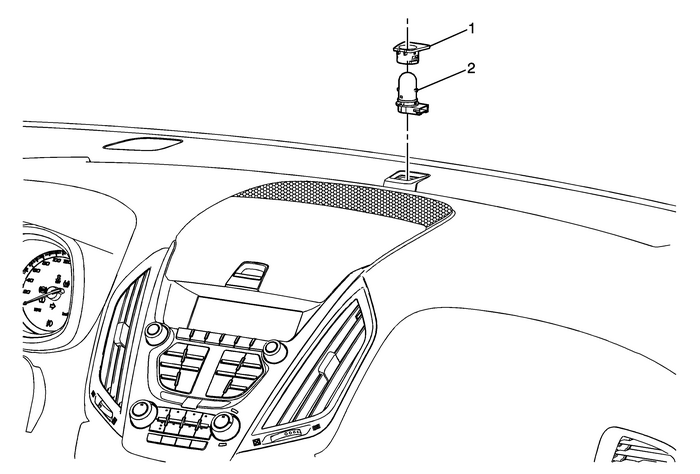

Headlamp Automatic Control Ambient Light Sensor Replacement

Callout

Component Name

1

Instrument Panel Accessory Trim Plate

Refer toInstrument Panel Accessory Trim Plate Replacement.

2

Headlamp Automatic Control Ambient Light Sensor

Procedure

Depress tabs to remove sensor from trim plate.
