Stabilizer Shaft Replacement Sway Bar Assembly

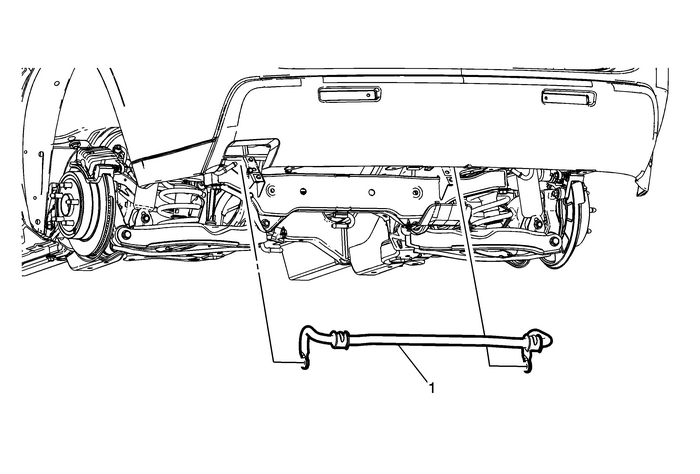

Stabilizer Shaft Replacement

Callout

Component Name

Preliminary ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Lower the rear suspension support enough to gain access tothe stabilizer shaft. Refer toRear Support Replacement
1	Rear Stabilizer Shaft ProcedureRemove the stabilizer links from the stabilizer shaft. RefertoStabilizer Shaft Link ReplacementRemove stabilizer shaft insulators. Refer toStabilizer Shaft Insulator Replacement

Stabilizer Shaft Link Replacement Sway Bar Assembly

Stabilizer Shaft Link ReplacementCalloutComponent NamePreliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the tire and wheel assembly. Refer toTire and Wheel Remova ...

Stabilizer Shaft Replacement Sway Bar Assembly

Stabilizer Shaft ReplacementCalloutComponent NamePreliminary ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the tire and wheel assemblies. Refer toTire and Whee ...
