Stabilizer Shaft Insulator Replacement Sway Bar Assembly

Stabilizer Shaft Insulator Replacement

Callout

Component Name

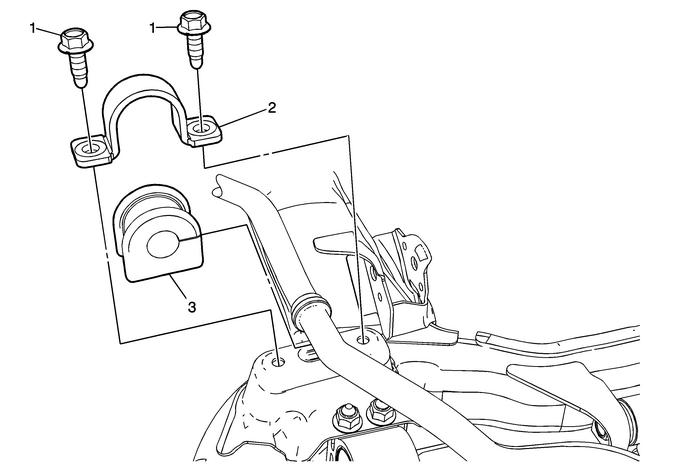

Preliminary ProceduresRaise the vehicle. Refer toLifting and Jacking the Vehicle.Remove the front tire and wheel assemblies. Refer toTire and Wheel Removal and Installation.

1

Stabilizer Shaft Insulator Bracket Bolt (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

50-Y (37-lb-ft).

2

Stabilizer Shaft Insulator Bracket (Qty:-2)

3

Stabilizer Shaft Insulator (Qty:-2)

Stabilizer Shaft Insulator Replacement Sway Bar Assembly
Stabilizer Shaft Insulator ReplacementCalloutComponent NamePreliminary ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.1Stabilizer Shaft Insulator Bolt (Qty:-4)Caution: ...

Stabilizer Shaft Link Replacement Sway Bar Assembly
Stabilizer Shaft Link ReplacementCalloutComponent NamePreliminary ProcedureRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the rear tires and wheel assembly's, if needed. ...
