Stabilizer Shaft Insulator Replacement Sway Bar Assembly

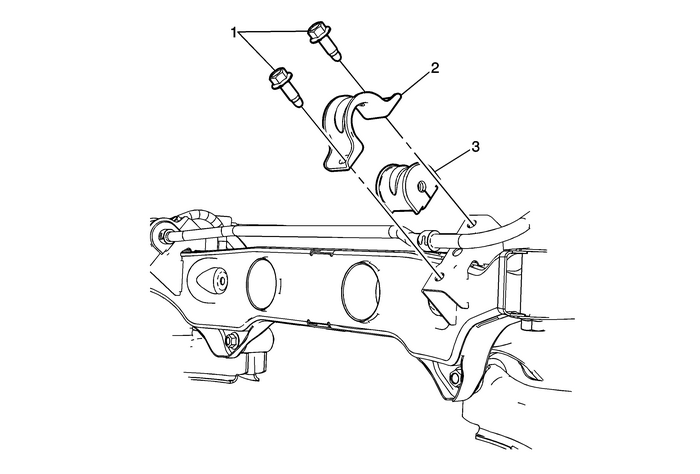

Stabilizer Shaft Insulator Replacement

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.

1

Stabilizer Shaft Insulator Bolt (Qty:-4)

Caution:Refer toFastener Caution.

Procedure

Lower the rear suspension support. Refer toRear Support Replacement.

Tip:Lower the rear suspension support enough to remove thestabilizer shaft clamp bolt.

Tighten

70-Y(52-lb-ft)

2

Stabilizer Shaft Insulator Clamp (Qty:-2)

3

Stabilizer Shaft Insulator (Qty:-2)
