Chevrolet Equinox Service Manual: Special Tools

Chevrolet Equinox Service Manual / Chassis / Suspension / Special Tools

Illustration

Tool Number/ Description

Special Tools

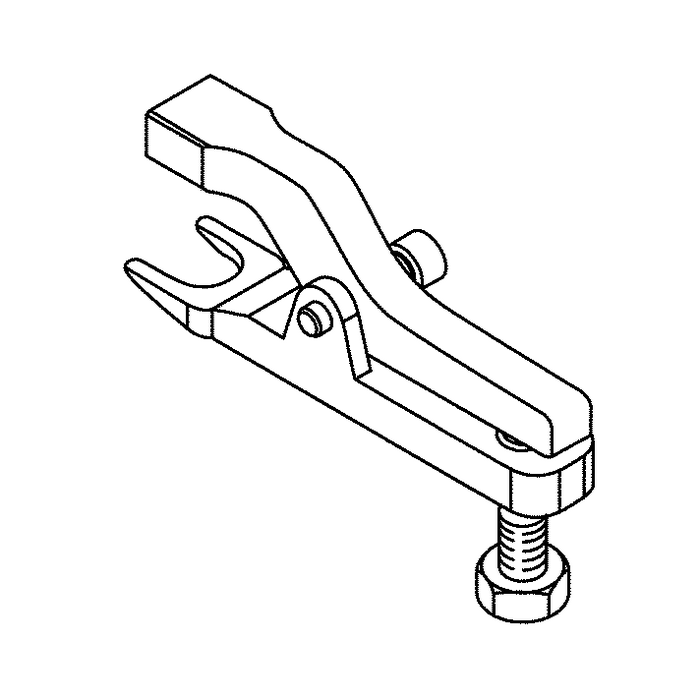

CH-50986

Ball Joint Remover

Special Tools

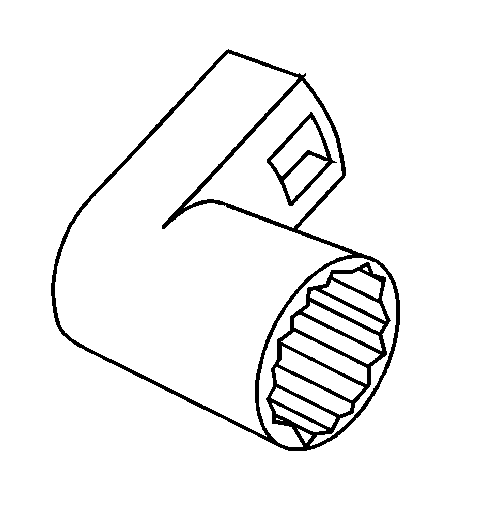

J-42991

Strut Rod Nut Socket

Special Tools

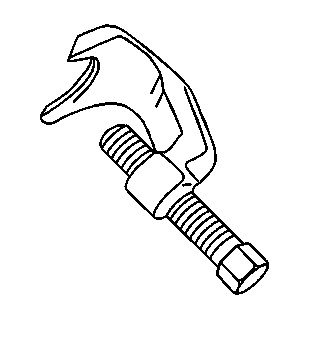

J-43631

Ball Joint Remover

Special Tools

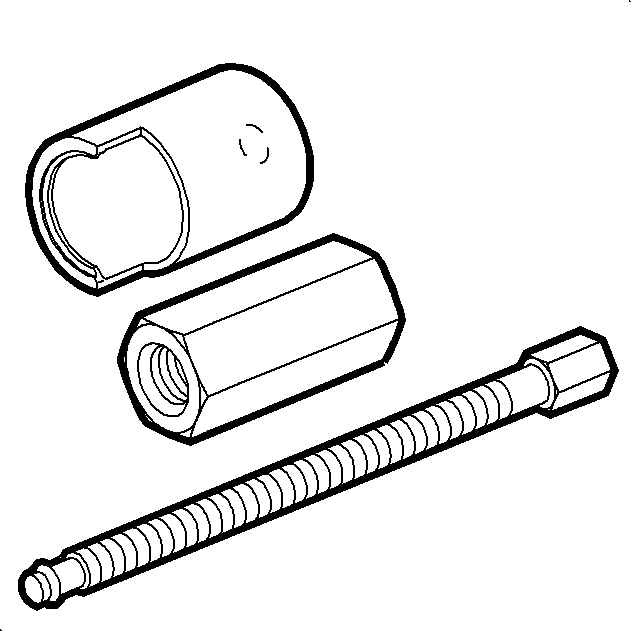

J-44971

Control Arm Bushing Remover/Installer

Special Tools

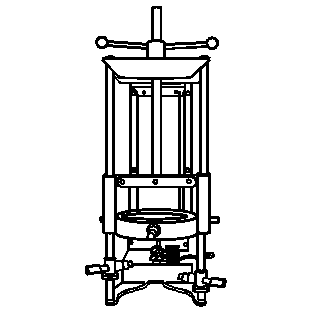

J-45400

Strut Spring Compressor
