Secondary Timing Chain Guide Removal - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain

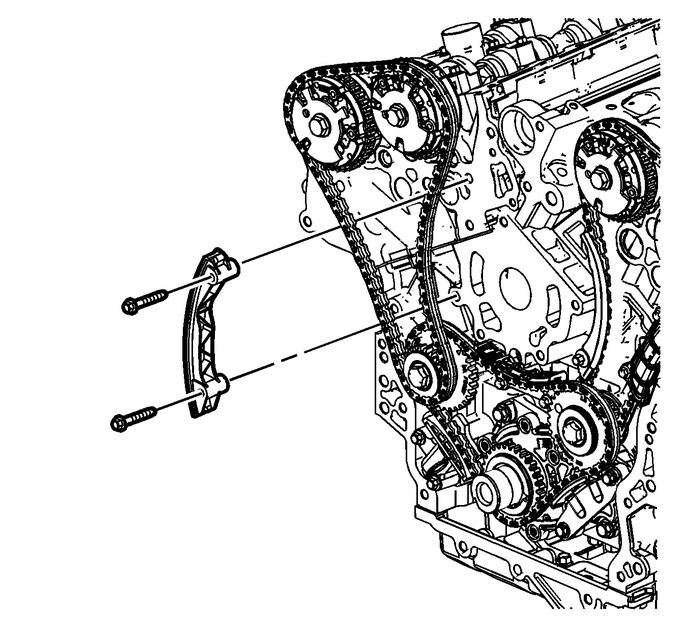

Remove the right secondary camshaft drive chain guidebolts.Remove the right secondary camshaft drive chain guide.

Secondary Camshaft Intermediate Drive Chain Removal - Right Side Valvetrain Camshaft

Remove the right secondary camshaft drive chain from theright camshaft position actuators and the right camshaftintermediate drive chain idler sprocket. ...

Secondary Camshaft Drive Chain Shoe Removal - Right Side Valvetrain Camshaft

Remove the right secondary camshaft drive chain shoebolt.Remove the right secondary camshaft drive chain shoe. ...
