Secondary Camshaft Intermediate Drive Chain Removal - Right Side Valvetrain Camshaft

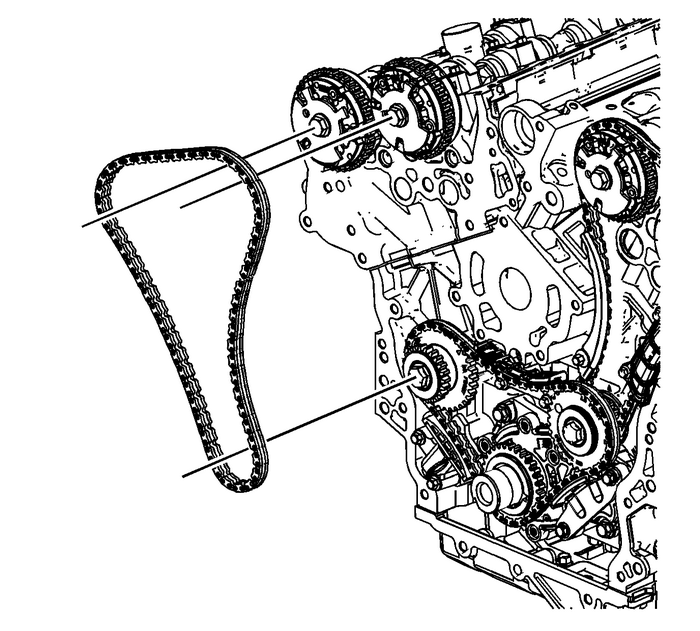

Remove the right secondary camshaft drive chain from theright camshaft position actuators and the right camshaftintermediate drive chain idler sprocket.

Cylinder Head Removal - Right Side Engine Block Cylinder Head
Remove the right cylinder head bolts-(1) and discard.Remove the right cylinder head-(2).Remove and discard the right cylinder head gasket-(1). ...

Secondary Timing Chain Guide Removal - Right Side Valvetrain Valvetrain Timing Timing Belt/Chain
Remove the right secondary camshaft drive chain guidebolts.Remove the right secondary camshaft drive chain guide. ...
