Secondary Air Injection Pump Inlet Hose Replacement Engine Control

..

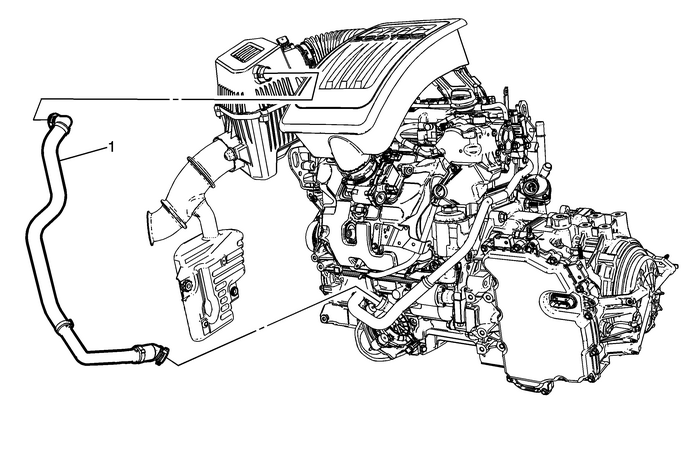

Secondary Air Injection Pump Inlet Hose Replacement

Callout

Component Name

1

Secondary Air Injection Inlet Pump Hose

Procedure

Disconnect the quick connect fittings by squeezing both sides.
