Roof Panel Molding Replacement (Terrain without V59) Panels Roof Panel

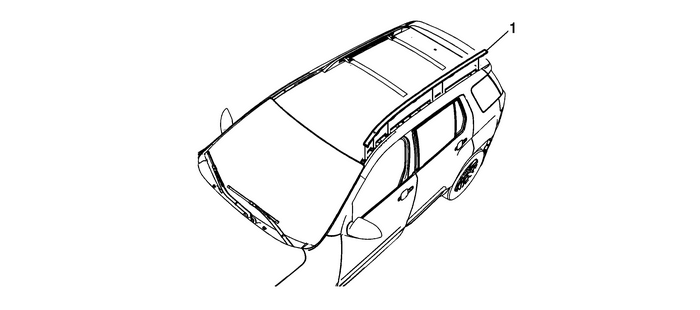

Roof Panel Molding Replacement

Callout

Component Name

Preliminary Procedure

Remove the luggage carrier side rail. Refer toLuggage Carrier Side Rail Replacement.

1

Roof Panel Molding Assembly

Procedure

Lift the molding from the six metal retainer clips in theroof ditch.
