Rocker Panel Molding Replacement (Terrain) Moldings Quarter Panel

Rocker Panel Molding Replacement

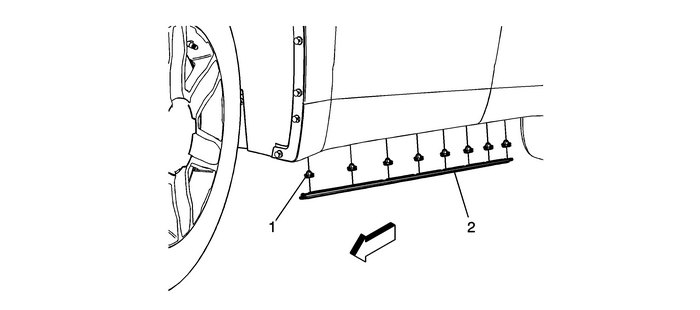

Callout

Component Name

Rocker Panel Molding Retainer (Qty:-8)

Procedure

Using a trim-type release tool, carefully release theretainers from the lower bodyside outer panel.

Rocker Panel Molding Assembly
