Rear Bumper Upper Fascia Replacement (Terrain) Bumpers Rear Bumper

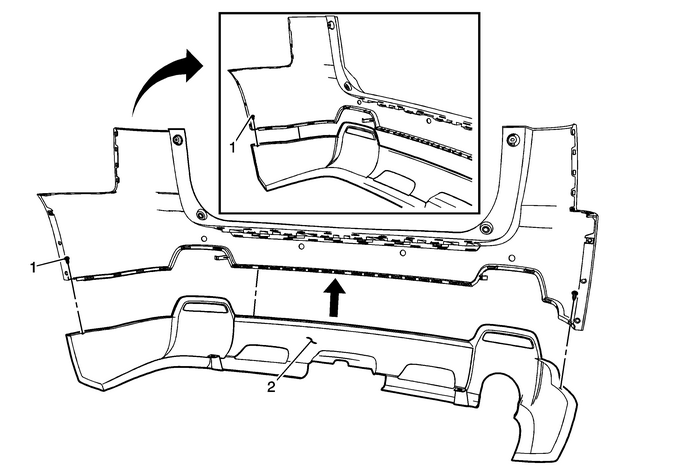

Rear Bumper Upper Fascia Replacement

Callout

Component Name

Preliminary ProceduresRemove the rear bumper fascia. Refer toRear Bumper Fascia Replacement.Remove the rear bumper fascia molding. Refer toRear Bumper Fascia Molding Replacement.

1

Rear Bumper Upper Fascia Screw (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

6-Y(53-lb-in)

2

Rear Bumper Upper Fascia

ProcedureCarefully push a small nylon wedge between the upper fasciaand the lower fascia. Insert a small flat-bladed tool into thefascia slot and depress the snaps one at a time and pull on thefascia at the same time to gradually remove the lower fascia fromthe upper fascia.Transfer part as necessary.
