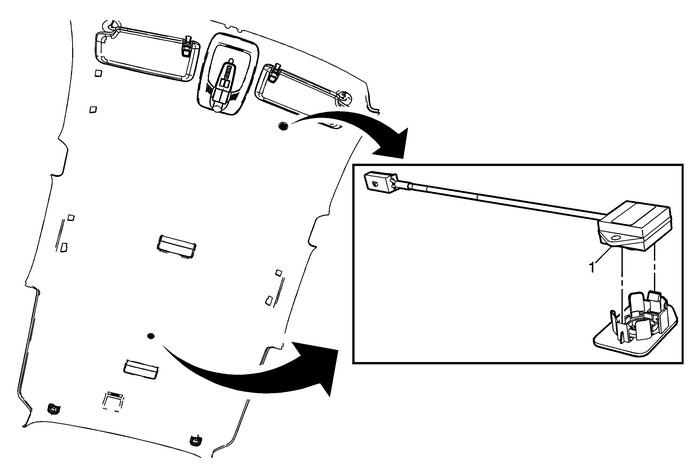

Radio Volume Compensator Interior Noise Microphone Replacement

Radio Volume Compensator Interior Noise Microphone Replacement

Callout

Component Name

Preliminary Procedure

Lower the front or rear of the headlining trim panel enoughto gain access to the microphone. Refer toHeadlining Trim Panel Replacement.

1

Radio Volume Noise Compensator Interior NoiseMicrophone

ProcedureDisconnect the electrical connector.Note the foam position around the front of the microphone andthe center foam plug over the top of the microphone to ensureproper installation.Remove the foam plug from the top of the microphone and largefoam patch from around the microphone.Unsnap the microphone from the grille assemblybracket.
