Radio, Video, and Audio Player and Navigation Information Display Replacement

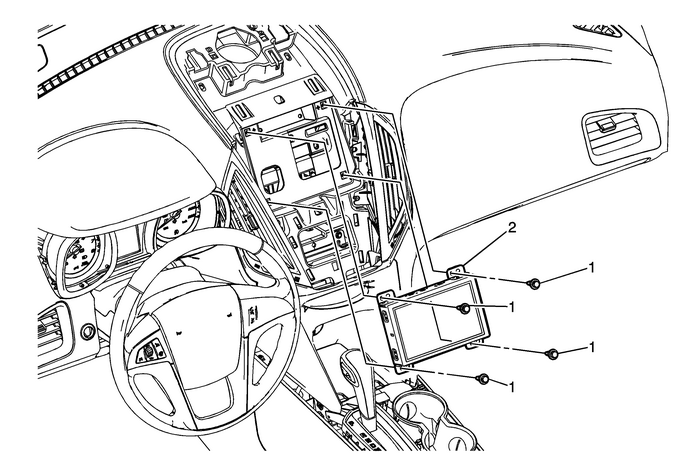

Callout

Component Name

Preliminary Procedure

Remove the radio control assembly. Refer toRadio Control Assembly Replacement.

Radio, Video, Audio Disc Player, and Navigation DisplayScrews (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

Radio, Video, Audio Disc Player, and NavigationDisplay

Procedure

Refer toControl Module Referencesfor programming and set upinformation.

Special Tools

IllustrationTool Number/DescriptionEL–50334–20Multi-Media Interface Tester (MIT)EL–50334–50USB Cable and Adapter KitEL-48028Digital Radio Test AntennaEL-49903OnStar Antenna Diagnostic Tool Kit ...

Speaker Replacement ReferenceComponentRepair InstructionFront Center SpeakersRadio Front Center Speaker ReplacementFront Side Door Lower SpeakersRadio Front Side Door Lower Speaker ReplacementFront Tw ...
