Chevrolet Equinox Service Manual: Special Tools

Chevrolet Equinox Service Manual / Accessories / Personal Communications / Special Tools

Illustration

Tool Number/Description

Special Tools

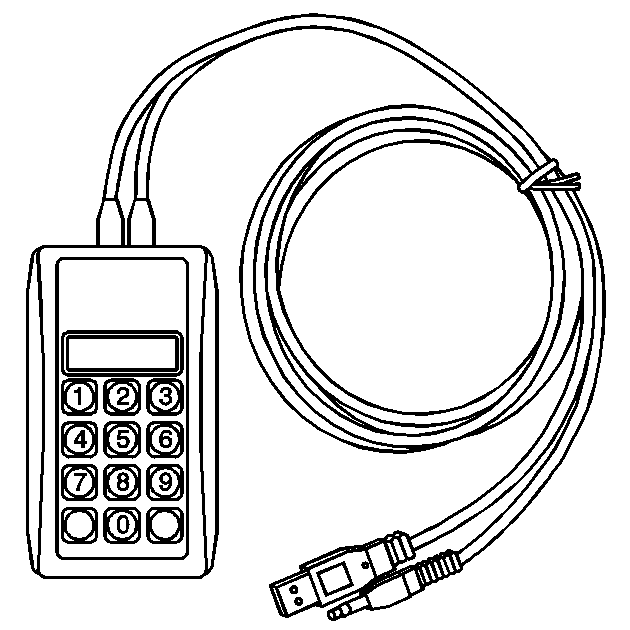

EL–50334–20

Multi-Media Interface Tester (MIT)

Special Tools

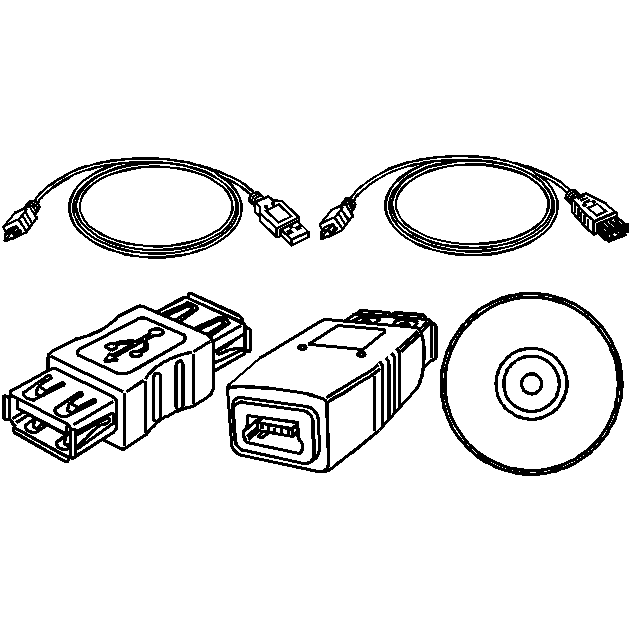

EL–50334–50

USB Cable and Adapter Kit

Special Tools

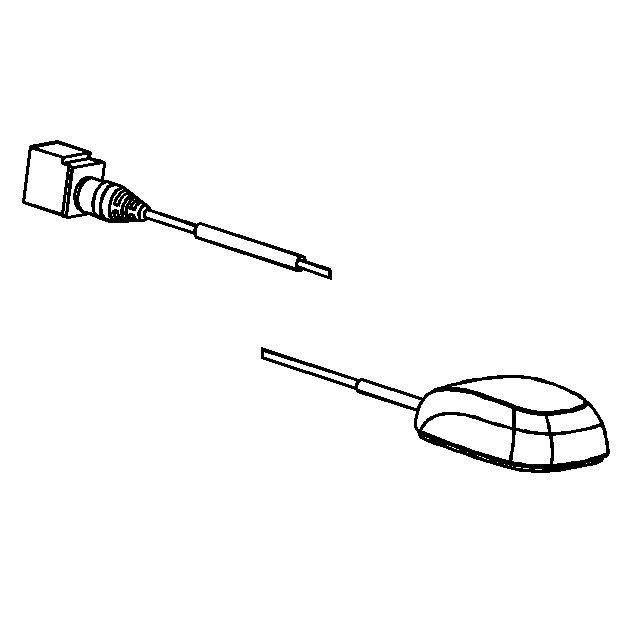

EL-48028

Digital Radio Test Antenna

Special Tools

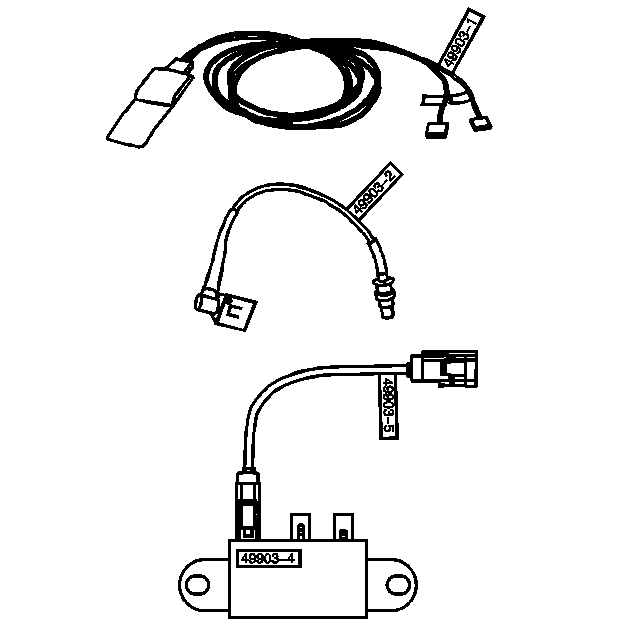

EL-49903

OnStar Antenna Diagnostic Tool Kit
