Oil Pump Disassemble Engine Lubrication Oil Pump

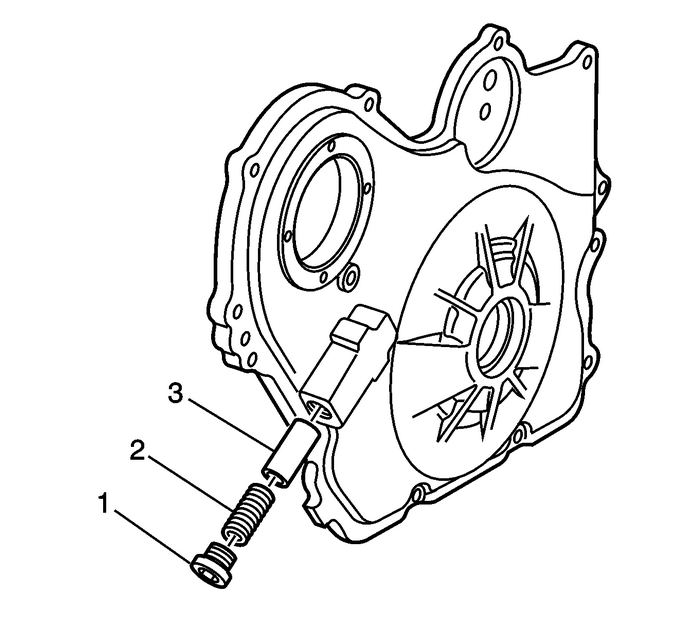

Remove the pressure relief plug-(1),spring-(2), and plunger-(3).

Oil Pump Disassemble Engine Lubrication Oil Pump

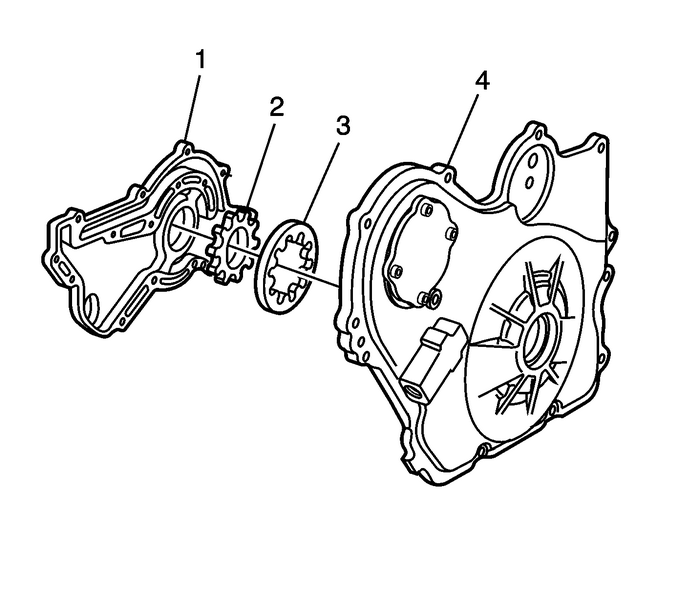

Remove the oil pump gerotor cover-(1) andbolts.Clean all of the parts in cleaning solvent. Remove varnish,sludge and dirt.Inspect the oil pump-(2, 3) for wear and scoring.Ensure that all components are within specifications. Refer toEngine Mechanical Specifications.

Replace the front cover-(4) and oil pump assemblyif it is out of specification or damaged.

Oil Pump Removal Engine Lubrication Oil Pump

Remove the oil pump bolts.Remove the oil pump. ...

Primary Camshaft Intermediate Drive Chain Removal Valvetrain Camshaft

Remove the primary camshaft drive chain. ...
