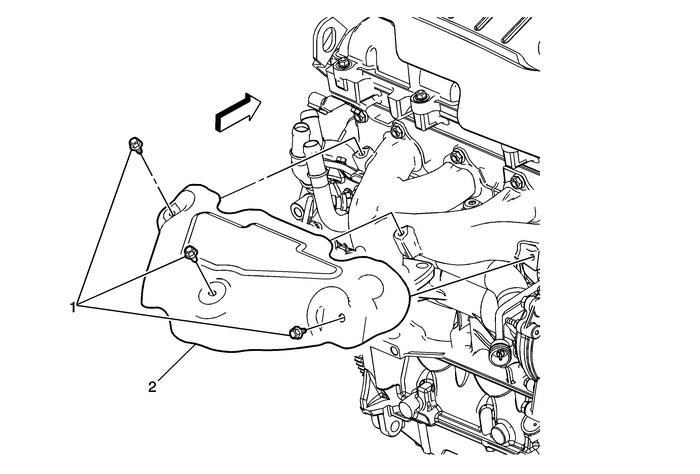

Exhaust Manifold Heat Shield Replacement

Callout

Component Name

Preliminary ProcedureRemove the air cleaner outlet duct. Refer toAir Cleaner Outlet Duct Replacement.Remove the intake manifold cover and bracket. Refer toIntake Manifold Cover ReplacementDisconnect the oxygen sensor.

Exhaust Manifold Heat Shield Bolt (Qty:-3)

Warning:Refer toHot Exhaust System Warning.

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

Exhaust Manifold Heat Shield
