Chevrolet Equinox Service Manual: Oil Pump Removal Engine Lubrication Oil Pump

Chevrolet Equinox Service Manual / Powertrain / Engine / Oil Pump Removal Engine Lubrication Oil Pump

Oil Pump Removal Engine Lubrication Oil Pump

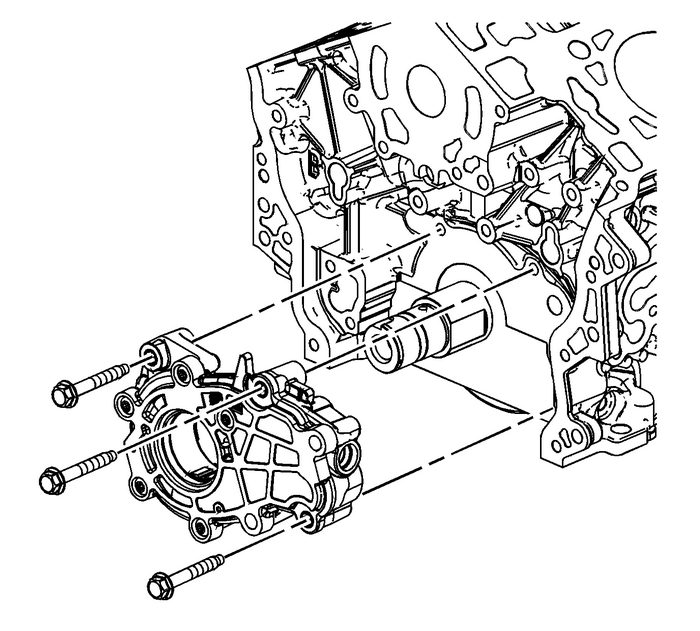

Remove the oil pump bolts.Remove the oil pump.

Oil Filter Adapter Disassemble Engine Lubrication Oil Filter
Remove the oil pressure sender.Remove the oil filter fitting. ...

Oil Pump Disassemble Engine Lubrication Oil Pump
Remove the pressure relief plug-(1),spring-(2), and plunger-(3).Remove the oil pump gerotor cover-(1) andbolts.Clean all of the parts in cleaning solvent. Remove varnish,sludge and dirt.Inspect the oi ...
