Oil Filter Adapter Installation Engine Lubrication Oil Filter

Position a NEW oil filter adapter gasket onto the oil filteradapter.

Oil Filter Adapter Installation Engine Lubrication Oil Filter

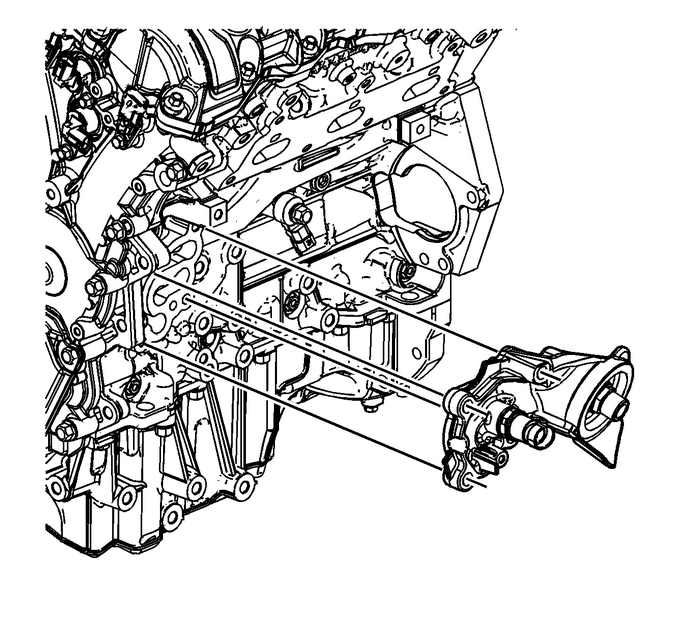

Place the oil filter adapter into position.

Oil Filter Adapter Installation Engine Lubrication Oil Filter

Caution:Refer toFastener Caution.

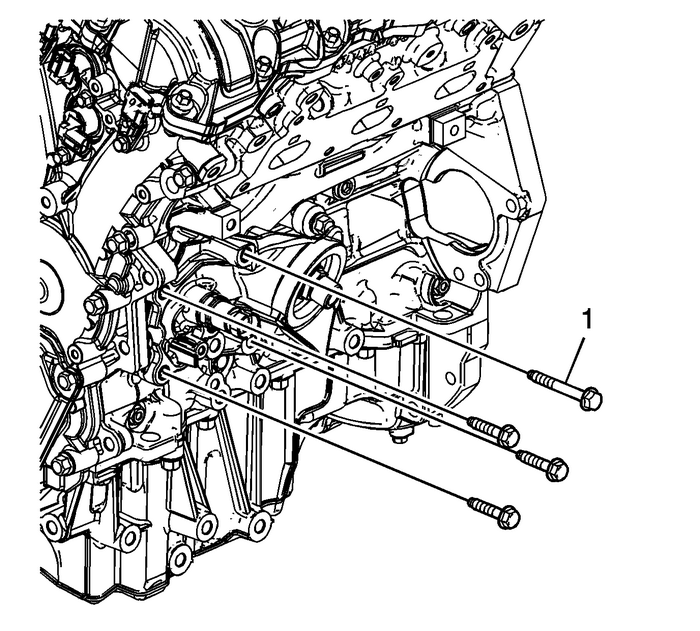

Install the oil filter adapter bolts. Ensure the longerbolts-(1) is installed in the upper rear position andtighten the oil filter adapter bolts to25-Y(18-lb-ft).

Oil Filter Adapter Installation Engine Lubrication Oil Filter

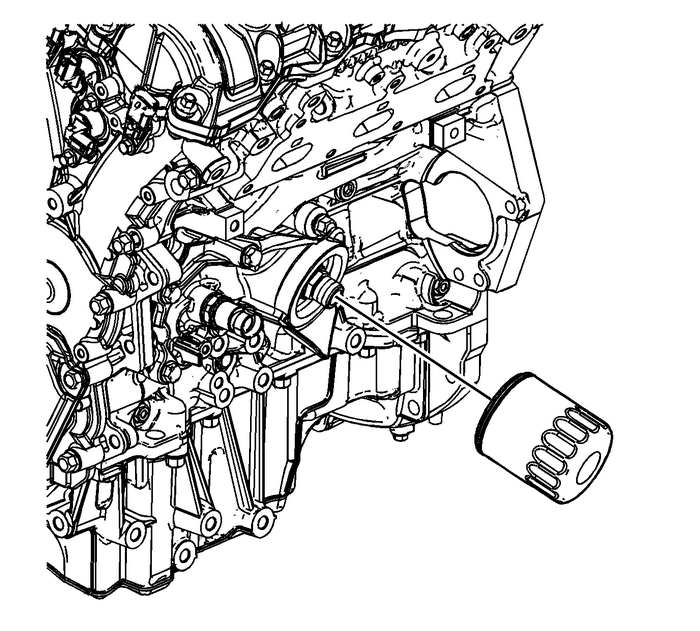

Install a NEW oil filter.
