Drive Belt Tensioner Installation Pulleys and Belts Belt Tensioner

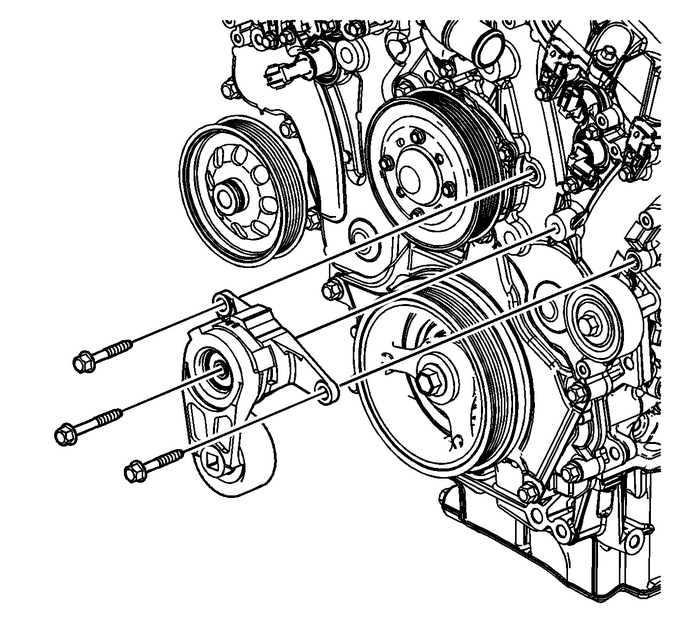

Place the left drive belt tensioner assembly in position tothe engine front cover.

Caution:Refer toFastener Caution.

Install the left drive belt tensioner bracket bolts andtighten to25-Y(18-lb-ft).
