Low and Reverse Clutch and 1-2-3-4 Clutch Plate Removal Automatic Transmission Unit Automatic Clutches

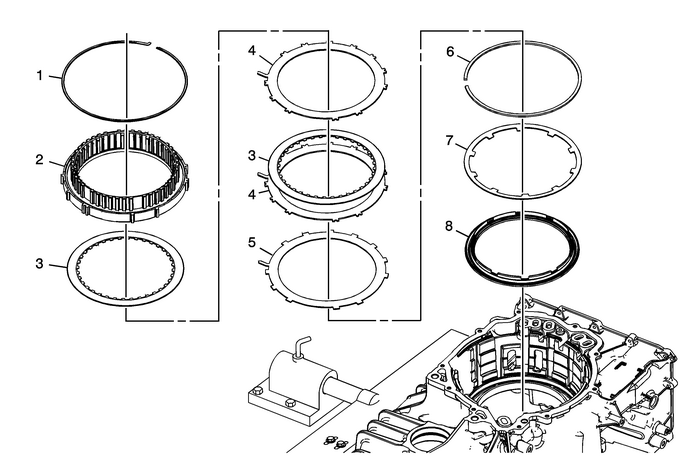

Low and Reverse Clutch and 1-2-3-4 Clutch Plate Removal

Callout

Component Name

1

Low and Reverse Clutch Retainer Ring

2

Low and Reverse Clutch Assembly

3

1–2–3–4 Clutch (w/Friction Material) Plate Assembly (Qty: 2)

4

1–2–3–4 Clutch Plate (Qty: 2)

5

1–2–3–4 Clutch (Waved) Plate

6

1–2–3–4 Clutch Spring Retainer Ring

7

1–2–3–4 Clutch Spring

8

1–2–3–4 Clutch Piston

Note:

Use pliers to remove the piston.Inspect the piston seals for damage and/or wear. The piston is reusable.
