Instrument Panel Compartment Door Dampener Replacement Consoles Center Console

Instrument Panel Compartment Door Dampener Replacement

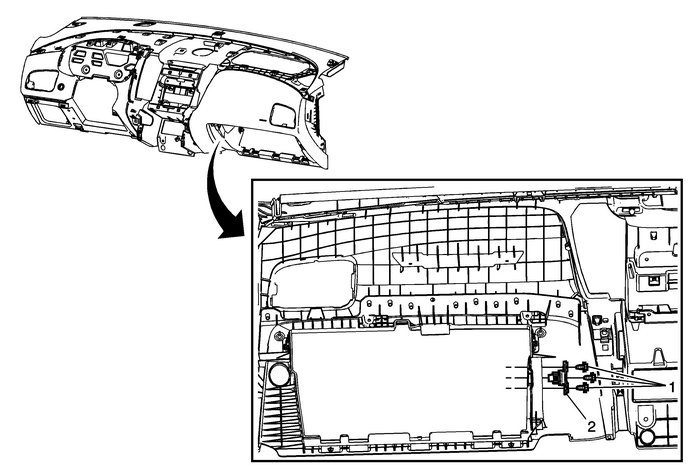

Callout

Component Name

Preliminary ProcedureRemove the instrument panel compartment door assembly. RefertoInstrument Panel Compartment Door Replacement.Remove the right instrument panel center air outlet. Refer toInstrument Panel Center Air Outlet Replacement.

Instrument Panel Compartment Door Dampener Fasteners(Qty:-3)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

Instrument Panel Compartment Door Dampener
