Chevrolet Equinox Service Manual: Ignition Coil Replacement Engine Control

Removal Procedure

Ignition Coil Replacement Engine Control

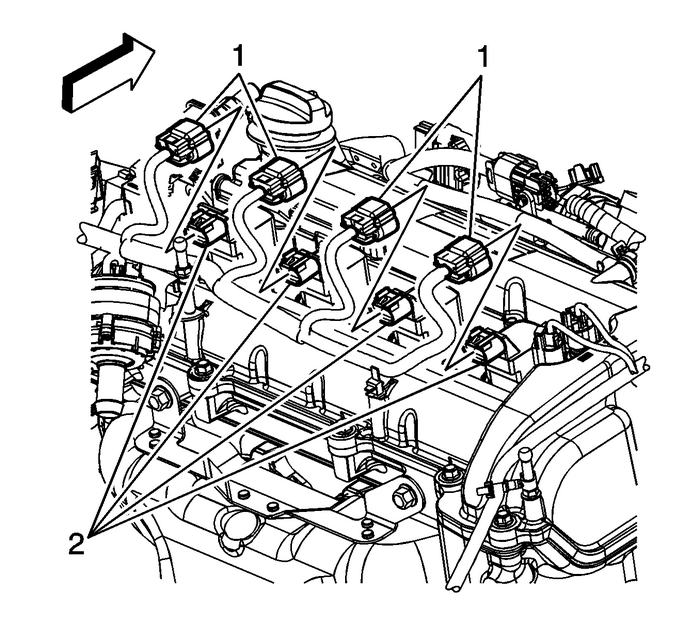

Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Disconnect the engine wiring harness electricalconnectors-(1) from the ignitioncoil(s)-(2).

Ignition Coil Replacement Engine Control

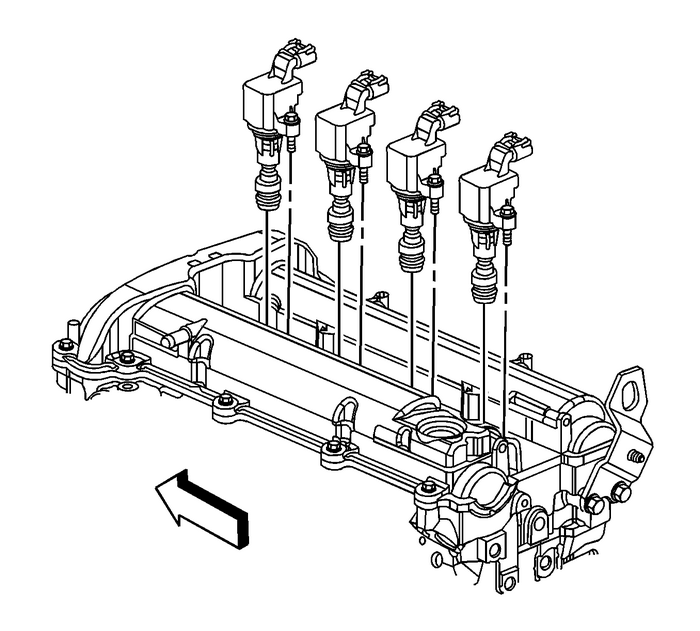

Remove the ignition coil bolt(s).Remove the ignition coil(s).Installation Procedure

Ignition Coil Replacement Engine Control

Install the ignition coil(s).

Caution:Refer toFastener Caution.

Install the ignition coil bolt(s) and tighten to10-Y(89-lb-in).

Ignition Coil Replacement Engine Control

Connect the engine wiring harness electricalconnector(s)-(1) to the ignitioncoil(s)-(2).Install the intake manifold cover. Refer toIntake Manifold Cover Replacement.

Ignition Coil Replacement - Bank 2 Engine Control
Removal ProcedureRemove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Disconnect the engine wiring harness electrical connector(s) (5) from the ignitioncoil(s) (4).Remove the ig ...

Ignition Coil Replacement - Bank 1 Engine Control
Removal ProcedureRemove the intake manifold. Refer toIntake Manifold Replacement.Disconnect the engine wiring harness electrical connector(s) (1) from the ignitioncoil(s) (4).Remove the ignition coil ...
