Chevrolet Equinox Service Manual: Special Tools Starting System

Chevrolet Equinox Service Manual / Powertrain / Engine / Special Tools Starting System

Illustration

Tool Number/Description

Special Tools Starting System

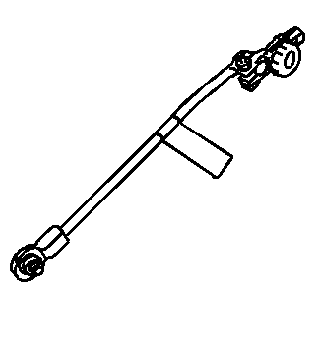

EL-38758

EL-50074

J-38758

Parasitic Draw Test Switch

Special Tools Starting System

Special Tools Starting System

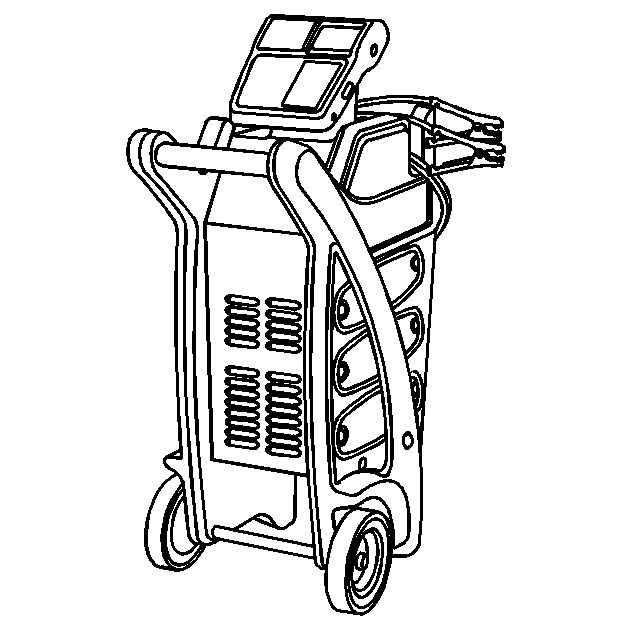

EL-50313

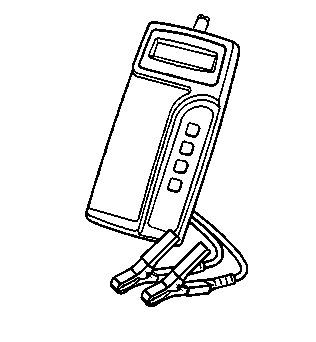

EL-42000

EL-50076

J-42000

Battery Tester
