Chevrolet Equinox Service Manual: Ignition Coil Replacement - Bank 2 Engine Control

Chevrolet Equinox Service Manual / Powertrain / Internal Combustion Powertrain Control / Ignition Coil Replacement - Bank 2 Engine Control

Removal Procedure

Ignition Coil Replacement - Bank 2 Engine Control

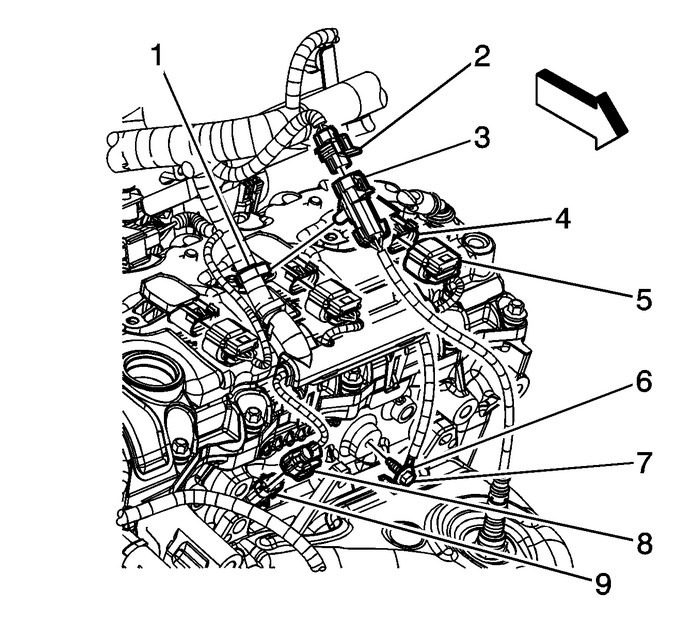

Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Disconnect the engine wiring harness electrical connector(s) (5) from the ignitioncoil(s) (4).

Ignition Coil Replacement - Bank 2 Engine Control

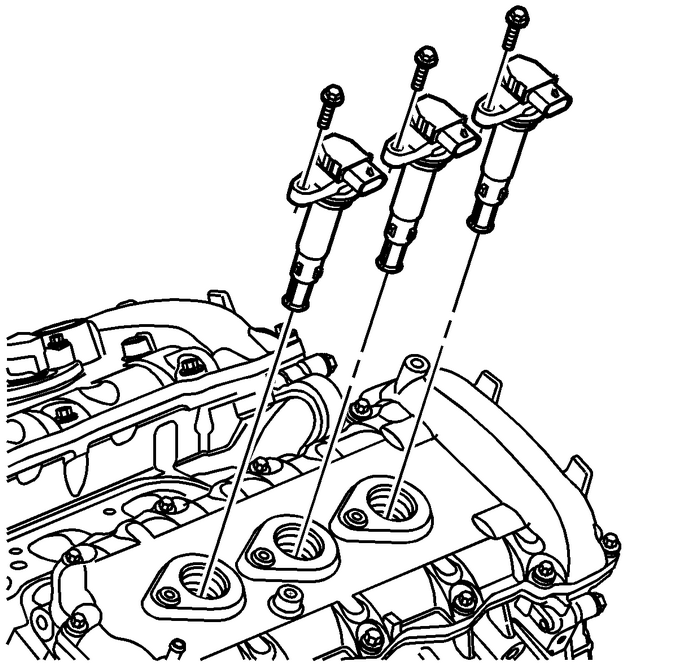

Remove the ignition coil bolt(s).Remove the ignition coil(s).Installation Procedure

Ignition Coil Replacement - Bank 2 Engine Control

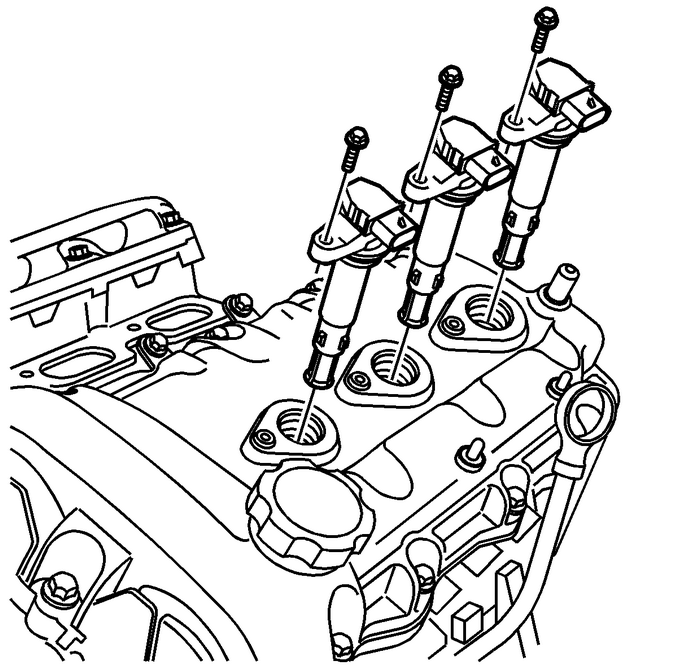

Install the ignition coil(s).

Caution:Refer toFastener Caution.

Install the ignition coil bolt(s).

Tighten

Tighten the bolt(s) to 10-Y (89-lb-in).

Ignition Coil Replacement - Bank 2 Engine Control

Connect the engine wiring harness electrical connector(s) (5) to the ignition coil(s)(4).Install theintake manifold cover. Refer toIntake Manifold Cover Replacement.
