Heater Outlet Hose Replacement (LEA)

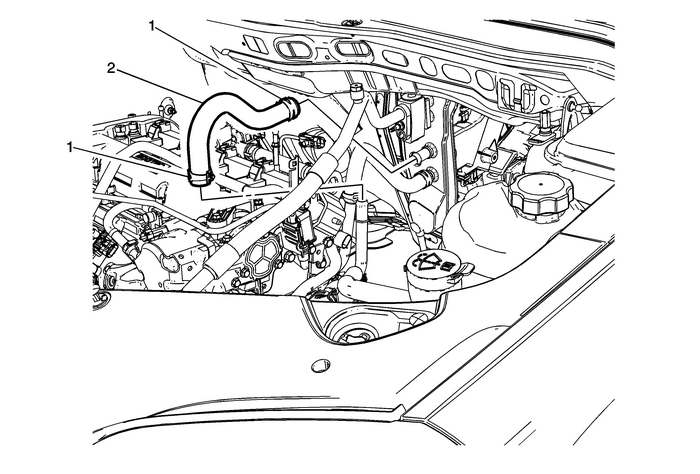

Heater Outlet Hose Replacement

Callout

Component Name

Preliminary ProceduresDrain the cooling system. Refer toCooling System Draining and FillingRemove the intake manifold cover. Refer toIntake Manifold Cover Replacement

1

Heater Outlet Hose Clamps (Qty-2)

Procedure

UsingJ 38185Hose Clamp Pliersreposition the heater outlet hose clamps.

Special Tools

J 38185Hose Clamp Pliers

2

Heater Outlet Hose
