Air Inlet Valve Actuator Replacement

Air Inlet Valve Actuator Replacement

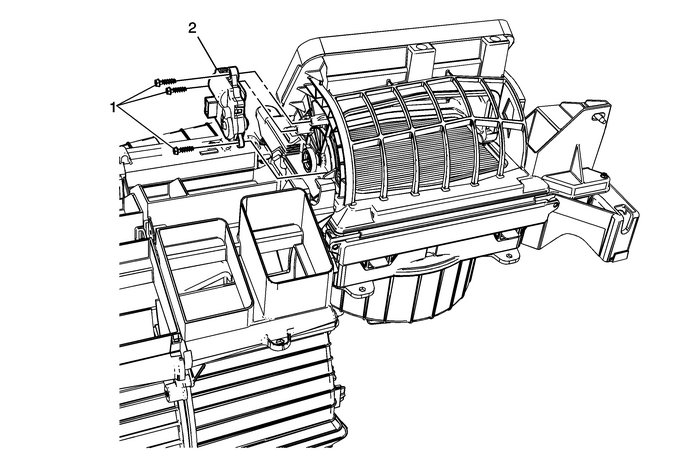

Callout

Component Name

Preliminary ProceduresRemove the upper I/P trim panel. Refer toInstrument Panel Upper Trim Panel Replacement.Reposition any wiring or hoses to gain access to air inletvalve actuator.

1

Air Inlet Valve Actuator Screw (Qty:-3)

Caution:Refer toFastener Caution

Tighten

1.5-Y(13-lb-in)

2

Air Inlet Valve Actuator

ProcedureDisconnect wiring connector at actuatorCalibrate the air inlet valve actuator. Refer toActuator Recalibration.
Heater Outlet Hose Replacement (LEA)
Heater Outlet Hose ReplacementCalloutComponent NamePreliminary ProceduresDrain the cooling system. Refer toCooling System Draining and FillingRemove the intake manifold cover. Refer toIntake Manifold ...

Air Inlet Valve Actuator Replacement
Air Inlet Valve Actuator ReplacementCalloutComponent NamePreliminary ProceduresRemove thewinshield defroster duct. Refer toWindshield Defroster Duct Replacement.Reposition any wiring or hoses to gain ...
