Chevrolet Equinox Service Manual: Air Inlet Valve Actuator Replacement

Chevrolet Equinox Service Manual / HVAC / Air Inlet Valve Actuator Replacement

Air Inlet Valve Actuator Replacement

Air Inlet Valve Actuator Replacement

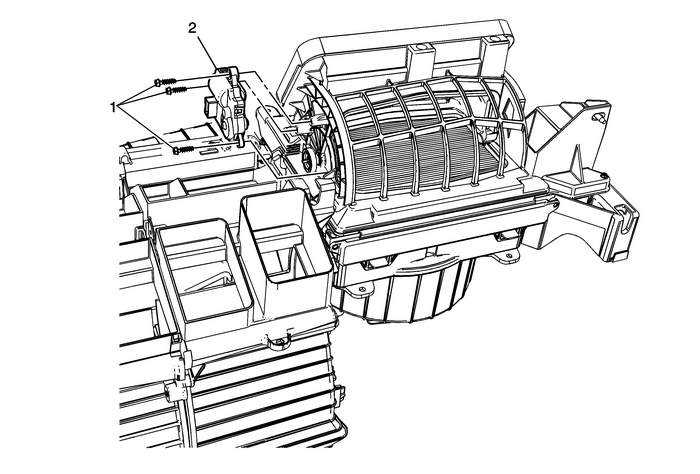

Callout

Component Name

Preliminary ProceduresRemove thewinshield defroster duct. Refer toWindshield Defroster Duct Replacement.Reposition any wiring or hoses to gain access to air inletvalve actuator.

1

Air Inlet Valve Actuator Screw (Qty:-3)

Caution:Refer toFastener Caution.

Tighten

1.5-Y(13-lb-in)

2

Air Inlet Valve Actuator

ProcedureDisconnect wiring connector at actuatorCalibrate the air inlet valve actuator. Refer toActuator Recalibration.
Air Inlet Valve Actuator Replacement
Air Inlet Valve Actuator ReplacementCalloutComponent NamePreliminary ProceduresRemove the upper I/P trim panel. Refer toInstrument Panel Upper Trim Panel Replacement.Reposition any wiring or hoses to ...

HVAC Component Replacement Reference
HVAC Component Replacement ReferenceScan Tool NameComponent Code / Schematic NameService NameRepair Instruction NameAir Recirculation Door ActuatorM46-Air Recirculation Door ActuatorAir Recirculation ...
