Front Fender Replacement (Terrain) Panels Fenders

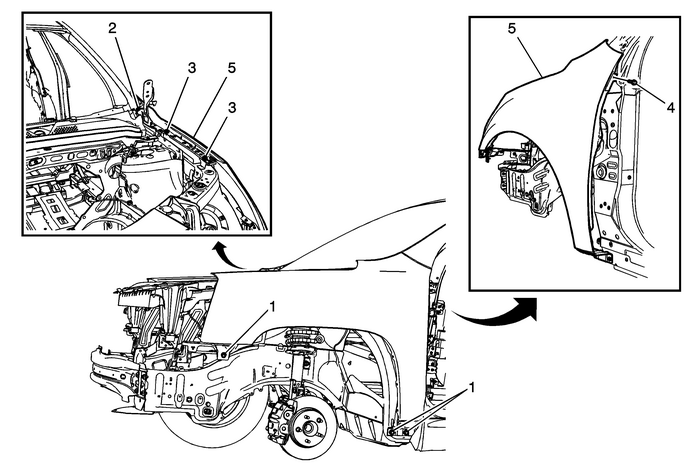

Front Fender Replacement

Callout

Component Name

Preliminary ProceduresRemove the front fender lower rear molding. Refer toFront Fender Lower Rear Molding ReplacementRemove the front bumper fascia. Refer toFront Bumper Fascia Replacement.Remove the front bumper fascia side retainer. Refer toFront Bumper Fascia Side Retainer Replacement.Remove the air inlet grille extension. Refer toAir Inlet Grille Panel Extension Replacement.Reposition the rear hood weatherstrip. Refer toHood Rear Weatherstrip Replacement.Remove the headlamp. Refer toHeadlamp Replacement.

1

Front Fender Bolt (Qty:-3)

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

2

Front Fender Bolt

Tighten

10-Y(89-lb-in)

3

Front Fender Bolt (Qty:-2)

Tighten

10-Y(89-lb-in)

4

Front Fender Bolt

Tighten

10-Y(89-lb-in)

5

Front Fender
