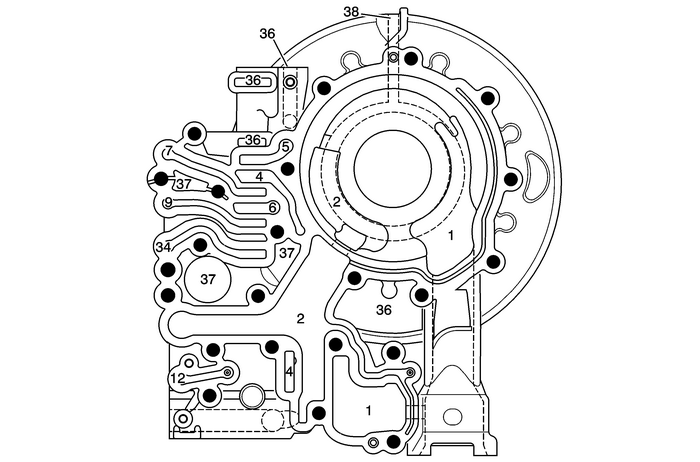

Fluid Pump Body-–-Fluid PumpCover Side

Fluid Pump Body - Fluid Pump Cover Side Automatic Transmission Unit

(1)	Suction
(2)	Line
(4)	Converter Feed
(5)	TCC Release
(6)	TCC Apply
(7)	Cooler Feed
(9)	Regulated Apply
(12)	PCS Line
(34)	PCS TCC
(36)	Exhaust
(37)	Void
(38)	Seal Drainback

Fluid Capacity Specifications (6T40/45/50) Automatic Transmission Unit

Fluid Capacity SpecificationsApplicationSpecificationMetricEnglishValve Body CoverRemoval-–-ApproximateCapacity5.0–7.0-liters5.3–7.4-quartsFluid Change-–-DrainPlug-–-Approximate Capacity4.0� ...

Fluid Pump Cover - Fluid Pump Body Side Automatic Transmission Unit

Fluid Pump Cover-–-FluidPump Body Side(1)Suction(2)Line(4)Converter Feed(5)TCC Release(6)TCC Apply(7)Cooler Feed(9)Regulated Apply(12)PCS Line(34)PCS TCC ...
