Evaporative Emission Canister Purge Solenoid Valve Replacement Emissions Evap Evap Canister Purge

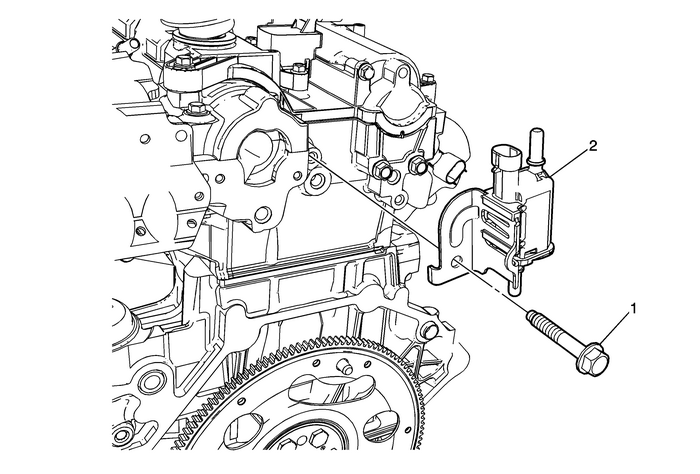

Evaporative Emission Canister Purge Solenoid Valve Replacement

Callout

Component Name

Preliminary ProceduresRemove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Disconnect the evaporative emission pipes. Refer toPlastic Collar Quick Connect Fitting Service.

1

Evaporative Emission Canister Purge Solenoid Fastener

Caution:Refer toFastener Caution.

Tighten

10-Y (89-lb-in)

2

Evaporative Emission Canister Purge Solenoid

Procedure

Disconnect the electrical connector.
