Driver Seat Adjuster Memory Switch Replacement Seats

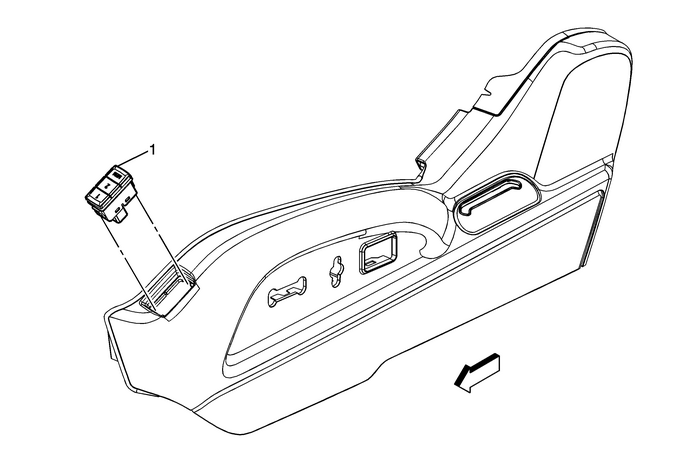

Driver Seat Adjuster Memory Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the driver or passenger seat outer adjuster finishcover. Refer toDriver or Passenger Seat Outer Adjuster Finish Cover Replacement.

1

Driver Seat Adjuster Memory Switch

Procedure

Pull up gently on the memory switch to disengage it from theouter recliner cover.
