Rear Axle Lubricant Level Inspection Axles Rear

Rear Axle Lubricant Level Inspection

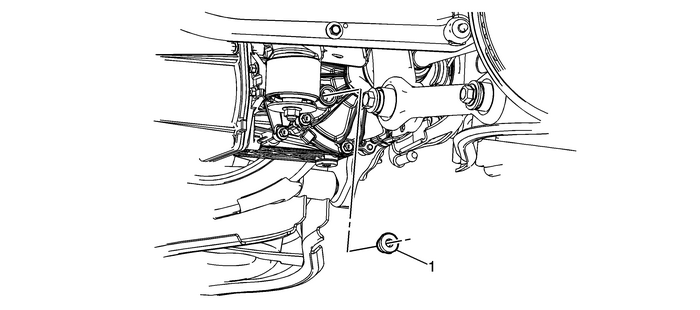

Callout

Component Name

Preliminary Procedure

Raise the vehicle. Refer toLifting and Jacking the Vehicle.

Rear Differential Fill Plug

Caution:Refer toFastener Caution.

Tip:

The fluid level should be level with the bottom of thethreads of the fill hole.If the fluid level is low, refer toDifferential Oil Replacementfor the proper fillinstructions and type of fluid.Tighten

39-Y(29-lb-ft)

Propeller Shaft Runout Specifications Driveshafts Propeller Shaft Assembly

Propeller Shaft Runout SpecificationsApplicationFront RunoutCenter RunoutRear RunoutStub Shaft RunoutMetricEnglishMetricEnglishMetricEnglishMetricEnglish1 Piece Propeller Shaft – Guideline1.17-mm0.0 ...

Rear Axle Specifications Axles Rear

Rear Axle SpecificationsApplicationSpecificationMetricEnglishGear Ratio 3.4L LNJ2.532.53Rear Differential Fill Quantity500-ml16.9oz ...
