Driver Seat Adjuster Switch Replacement Seats

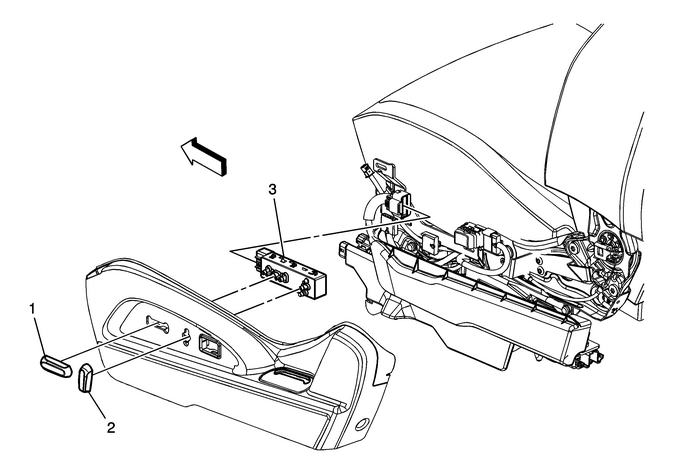

Driver Seat Adjuster Switch Replacement

Callout

Component Name

Preliminary Procedure

Remove the driver seat outer finish cover. Refer toDriver or Passenger Seat Outer Adjuster Finish Cover Replacement.

1

Front Seat Recliner Knob

2

Front Seat Adjuster Knob

3

Driver Seat Adjuster Switch

Tip:Use a flat-bladed tool to release the switch from the finishcover.
