Driver or Passenger Seat Head Restraint Guide Replacement Seats

Driver or Passenger Seat Head Restraint Guide Replacement

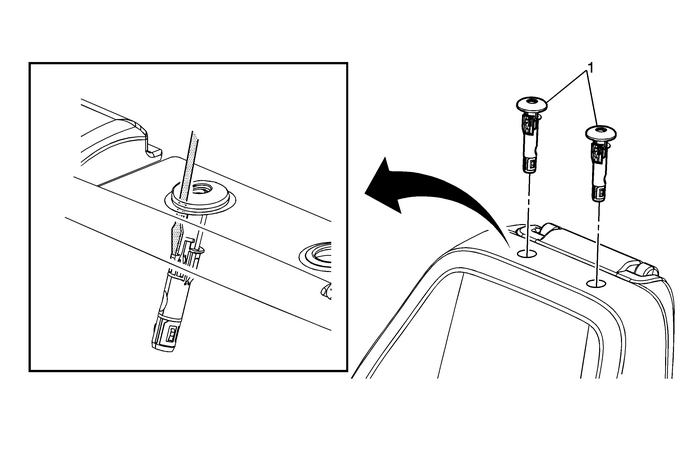

Callout

Component Name

Preliminary Procedure

Remove the front seat head restraint. Refer toDriver or Passenger Seat Head Restraint Replacement.

Front Seat Head Restraint Guide

Procedure

Using a suitable flat-bladed tool, slide the tool between therear seat back center cover and the guide until you find the sloton the outboard side of the guide. Push inward on the guide slottab , while pulling upward to remove the guide from the seat backcenter frame.

Driver or Passenger Seat Cushion Heater Replacement Seats

Driver or Passenger Seat Cushion Heater ReplacementCalloutComponent NamePreliminary ProcedureRemove the driver or passenger seat. Refer toDriver or Passenger Seat Removal and Installation.Remove the f ...

Driver or Passenger Seat Head Restraint Replacement Seats

Driver or Passenger Seat Head Restraint ReplacementCalloutComponent Name1Driver or Passenger Seat Head RestraintProcedureLower the seat back rearward to gain space between the headrestraint and the ro ...
