Cylinder Head Removal - Left Side Engine Block Cylinder Head

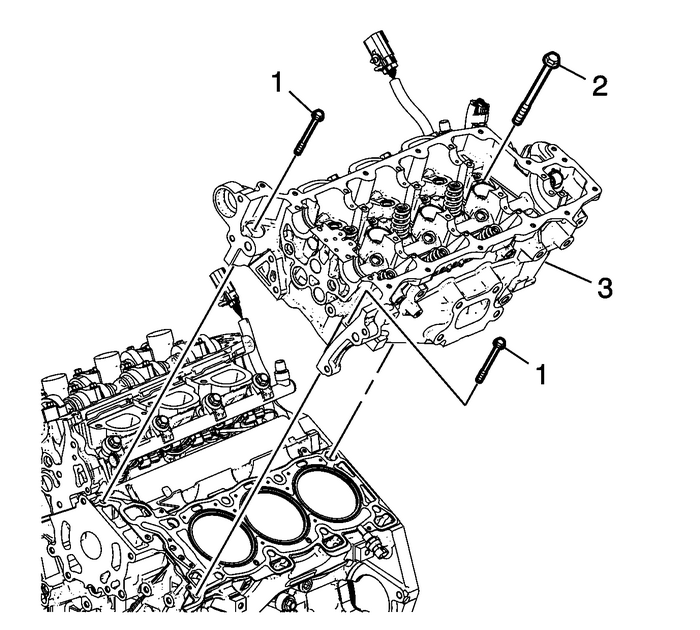

Remove the two-front M8 left cylinder head bolts-(1) and discard.Remove the left cylinder head bolts-(2) and discard.Remove the left cylinder head-(3).

Cylinder Head Removal - Left Side Engine Block Cylinder Head

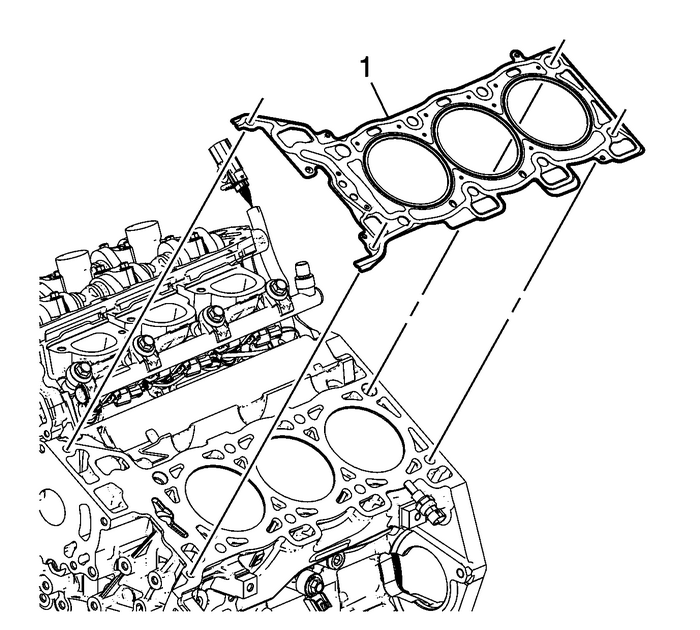

Remove and discard the left cylinder head gasket-(1).

Intake Manifold Disassemble Intake and Forced Induction Intake Manifold

Remove the throttle body bolts-(1).Remove the throttle body-(2).Remove and discard the throttle bodyseal-(3).Loosen the evaporative-(EVAP) solenoidbolt.Remove the EVAP solenoid-(1).Remove the manifold ...

Valve Rocker Arm Removal - Right Side Valvetrain Valve Actuating Assembly Rocker Arms

Remove the valve rocker arms from the cylinder head. If therocker arms are to be reused, keep in order so they can bereinstalled in the same position. ...
