Crankshaft Rear Oil Seal and Housing Removal Engine Block Seals and Gaskets

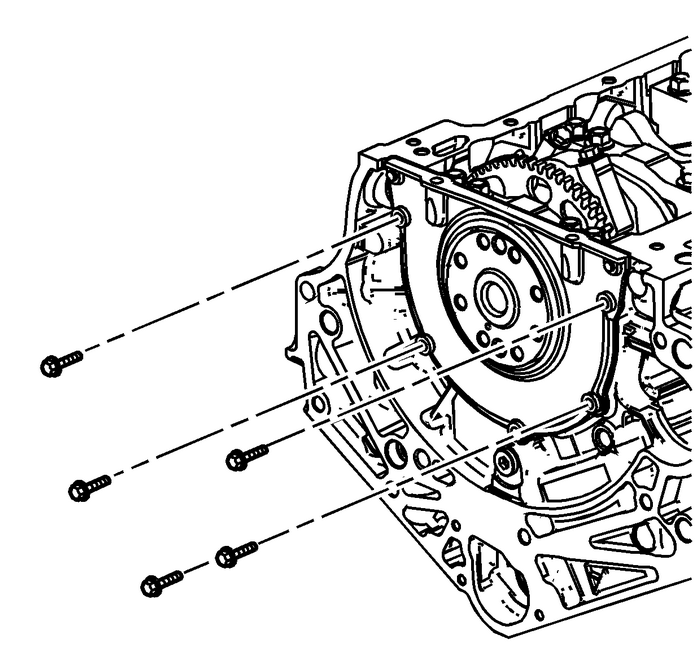

Remove the crankshaft rear oil seal housing bolts.

Crankshaft Rear Oil Seal and Housing Removal Engine Block Seals and Gaskets

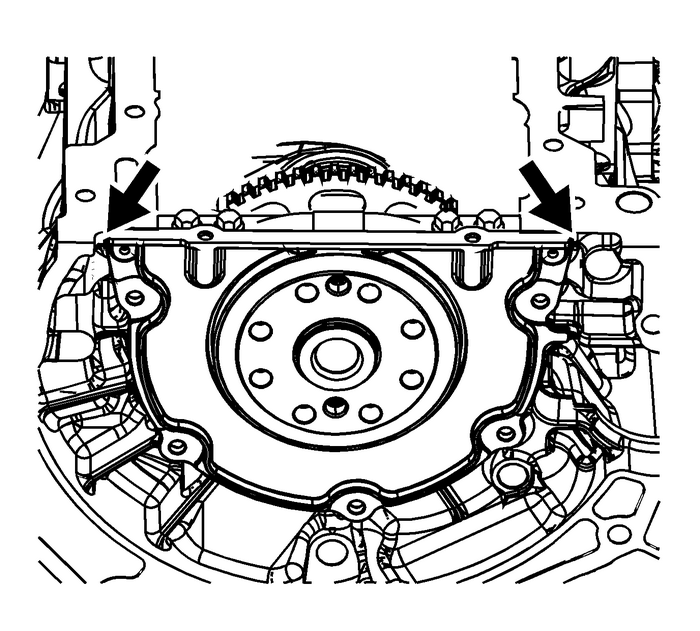

Use the pry points located at the edge of the crankshaft rearoil seal housing to separate the RTV sealant.

Crankshaft Rear Oil Seal and Housing Removal Engine Block Seals and Gaskets

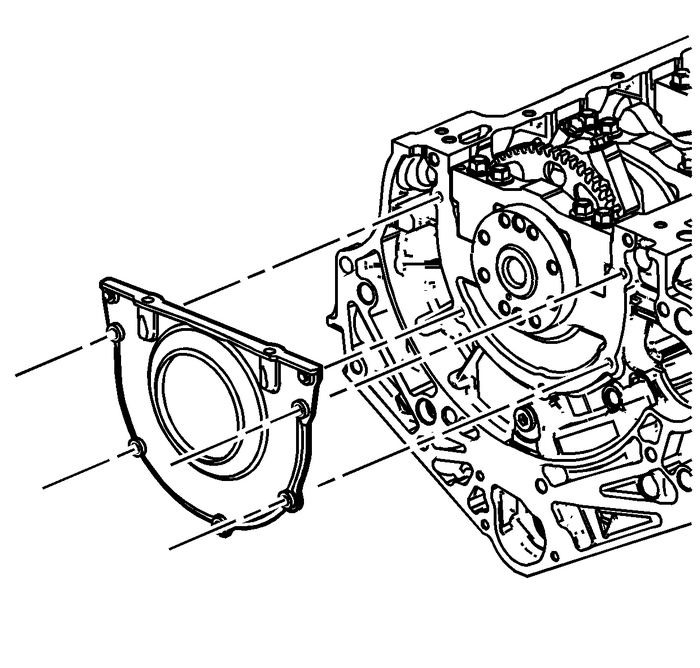

Remove and discard the crankshaft rear oil sealhousing.

Crankshaft and Bearing Removal Engine Block Cylinder Block Crankshaft

Remove the crankshaft-(1) from the block.Remove the crankshaft rear oil seal-(2) from theblock.Note:Crankshaft bearings MUST be separated, marked, or organizedin a way to ensure installation to their ...

Crankshaft Sprocket Removal Engine Block Cylinder Block Crankshaft Sprocket

Remove the crankshaft sprocket from the nose of thecrankshaft. ...
