Chevrolet Equinox Service Manual: Crankshaft Balancer Cleaning and Inspection Engine Block Cylinder Block Crankshaft

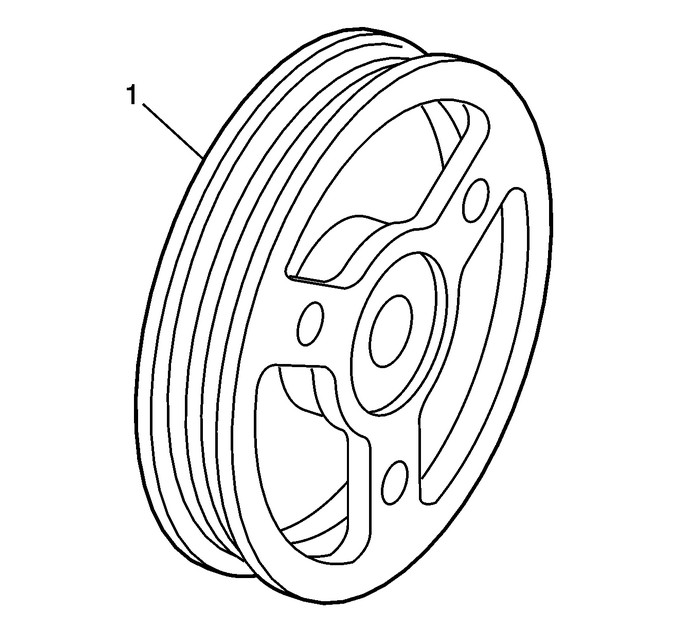

Clean the crankshaft balancer-(1).Clean the belt grooves of all dirt or debris with a wirebrush.
Warning:Refer toSafety Glasses Warning.
Dry the crankshaft balancer with compressed air.Inspect the crankshaft balancer for the following:Worn, grooved, or damaged hub seal surfaceA crankshaft balancer hub seal surface with excessivescoring, grooves, rust or other damage must be replaced.Note:In order for the belt to track properly, the belt groovesshould be free of all dirt or debris.
Dirty or damaged belt groovesThe balancer belt grooves should be free of any nicks,gouges, or other damage that may not allow the belt to trackproperly.
Minor imperfections may be removed with a fine file.Worn, chunking or deteriorated rubber between the hub andpulley
Balance Shaft Cleaning and Inspection Engine Block Cylinder Block Balance Shaft
Clean the balance shafts-(1) in solvent.Inspect the bearing surfaces on the balance shafts forscoring or unusual wear.Note:Do not remove the balance shaft drive sprockets.Inspect the balance shaft dri ...
Intake Manifold Cleaning and Inspection (LAF, LEA, or LUK) Intake and Forced Induction Intake Manifold
Clean the intake manifold-(1) matingsurfaces.Inspect the intake manifold for damage.Inspect the intake manifold for cracks near metallicinserts.Clean and inspect the intake manifoldinsulator-(2) for d ...
