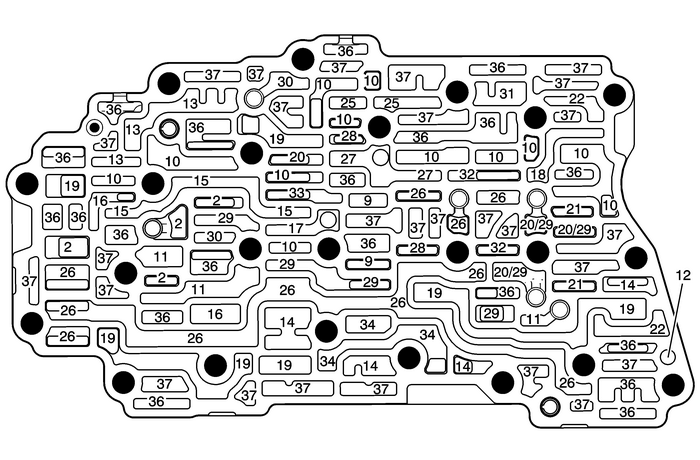

Control Valve Body-–-ChannelPlate Side

| (2) | Line |
| (9) | Regulated Apply |
| (10) | Exhaust Backfill |
| (11) | Actuator Feed Limit |
| (12) | PCS Line |
| (13) | PCS R1/456 Clutch |
| (14) | Shift Solenoid |
| (15) | R1/456 Clutch Feed |
| (16) | R1/456 Clutch Feedback |
| (17) | R1 |
| (18) | PCS 35 Reverse Clutch |
| (19) | Reverse |
| (20) | 35 Reverse Clutch Feed |
| (21) | 35 Reverse Clutch |
| (22) | Default |
| (25) | PCS 1234 Clutch |
| (26) | Drive |
| (27) | 1234 Clutch |
| (28) | 1234 Clutch Feedback |
| (29) | Drive 1-6 |
| (30) | Latch |
| (31) | PCS 26 Clutch |
| (32) | 26 Clutch |
| (33) | 456 Clutch |
| (34) | PCS TCC |
| (36) | Exhaust |
| (37) | Void |
Control Valve Body - Case Side Automatic Transmission Unit
Control Valve Body Assembly Assemble (Gen 2) Automatic Transmission Unit Control Valve BodyPiston, Connecting Rod, and Bearing Installation (LAF, LAT, LE5, LE9, LEA, or LUK) Engine Block Cylinder Block Piston Assembly
Note:This procedure is not used in Europe.Special ToolsEN-43966 Connecting Rod GuidesEN 45059 Angle MeterEN-47836 Piston Ring CompressorFor equivalent regional tools, refer toSpecial Tools.Install the connecting rod bearings. Use NEW bearings.Install the bearing inserts into the connecting rod and t ...
