Chevrolet Equinox Service Manual: Battery Positive Cable Replacement (LEA) Low Voltage Battery

Chevrolet Equinox Service Manual / Electrical / Battery System / Battery Positive Cable Replacement (LEA) Low Voltage Battery

Removal ProcedureRecord all of the radio station presets.Disconnect the battery negative cable. Refer toBattery Negative Cable Disconnection and Connection.

Battery Positive Cable Replacement (LEA) Low Voltage Battery

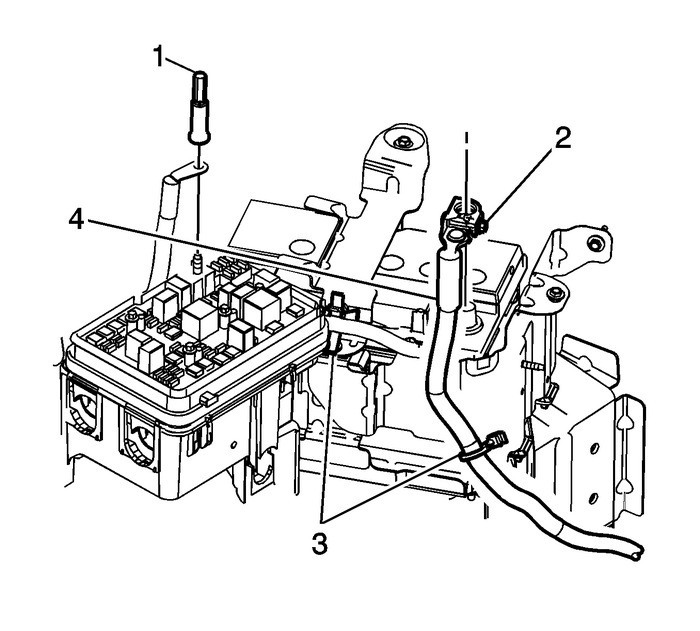

Remove the battery positive post clampnut-(2).Remove battery positive terminal-(1) at the fuseblock.Disconnect retainers-(3) holding battery positivecable-(4).

Battery Positive Cable Replacement (LEA) Low Voltage Battery

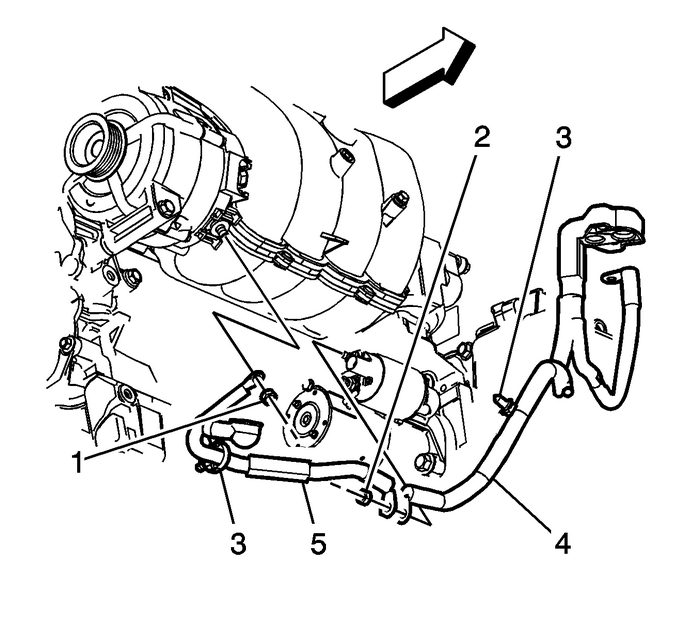

Remove generator nut-(1) from the generator B+stud.Remove the starter solenoid nut-(2).Remove the battery positive (Starter) cable-(4)and the battery positive (Generator) cable-(5) from thevehicle.Remove the retainers-(3) holding the batterypositive cables to the engine.

Note:Observe how the battery positive cable was routed within theengine compartment.

Installation Procedure

Battery Positive Cable Replacement (LEA) Low Voltage Battery

Caution:Refer toFastener Caution.

Install the battery positive cable nut-(2) to theB+ generator stud and tighten to20-Y(15-lb-ft).Install battery positive cable nut-(2) andterminals (Starter/Generator),to the starter solenoid.Tighten to10-Y(88-lb-in)Install retainers-(3) to the engine.

Battery Positive Cable Replacement (LEA) Low Voltage Battery

Install the battery positive cable terminalnut-(1) to the fuse block and tighten to16-Y(12-lb-ft).Install battery positive cable clamp nut-(2) tothe battery post and tighten to10-Y(88-lb-in)Install engine control module (ECM) and battery cover.Reset the radio channel presets.
