Audio Disc Player and USB Receptacle Replacement Entertainment Audio

Audio Disc Player and USB Receptacle Replacement

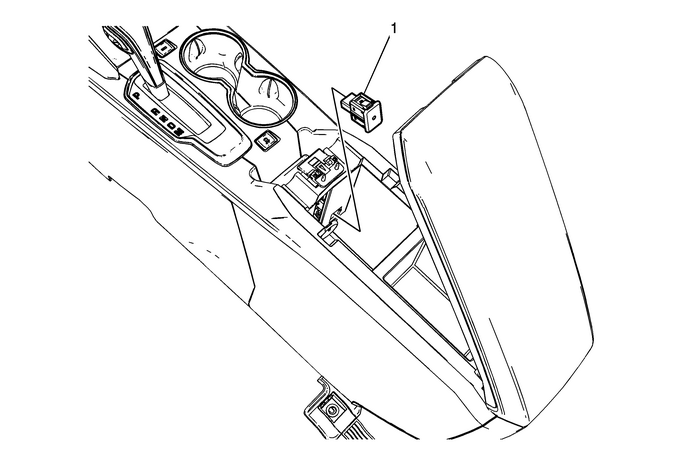

Callout

Component Name

1	Audio Disc Player and USB Receptacle ProcedureOpen arm rest and using a small flat bladed tool, release thereceptacle.Disconnect the electrical connector.

Overview Entertainment Audio-Visual

14151617VOL/ O (Volume/Power)g SEEKFAV (Favorite Pages)RADIO/BANDPreset Buttons 1–6AUX (Auxiliary)E BACKINFO (Information)MENU/SEL (Menu/Select)k (Play/Pause)CD Player5 / - (Phone/Mute)l SEEKH (Cloc ...

Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement Entertainment Audio

Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle ReplacementCalloutComponent Name1Audio Disc Player, USB, Auxiliary In, and Memory CardReceptacleProcedureOpen arm rest and using a smal ...
