Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement Entertainment Audio

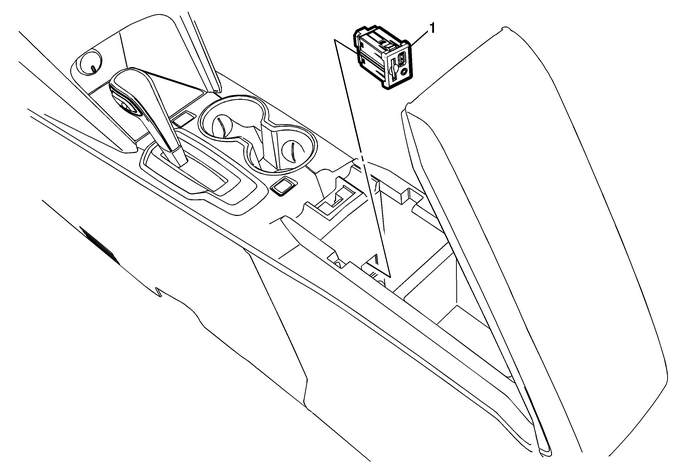

Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement

Callout

Component Name

1	Audio Disc Player, USB, Auxiliary In, and Memory CardReceptacle ProcedureOpen arm rest and using a small flat bladed tool, release thereceptacle.Disconnect the electrical connector.

Audio Disc Player and USB Receptacle Replacement Entertainment Audio

Audio Disc Player and USB Receptacle ReplacementCalloutComponent Name1Audio Disc Player and USB ReceptacleProcedureOpen arm rest and using a small flat bladed tool, release thereceptacle.Disconnect th ...

Audio/Video Disc Player Adapter Replacement Entertainment Audio-Visual

Audio/Video Disc Player Adapter ReplacementCalloutComponent NamePreliminary ProcedureRemove the front floor console rear cover. Refer toFront Floor Console Rear Cover Replacement.1Audio Video Disc Pla ...
