Chevrolet Equinox Owners Manual: Heated and Ventilated Seats

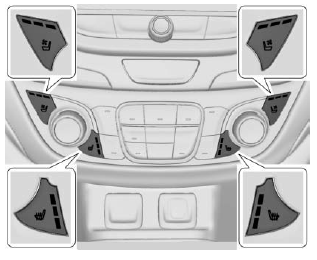

If available, the buttons are on the climate control panel. To operate, the engine must be running.
To heat the driver or passenger seat
cushion and seatback, press
or
. Indicator lights on the button
show the current setting.
To ventilate the driver or passenger
seat cushion and seatback, press
or
. Indicator lights on the button
show the current setting.
Press the heated or ventilated button once for the highest setting.
With each press of the button, the heated or ventilated seat will change to the next lower setting, and then to the off setting. The lights indicate three for the highest setting and one for the lowest.
See Heated and Ventilated Front Seats.
