Airbag Side Impact Sensor Replacement - Front Side Door Restraints Control Crash Sensors

Inflatable Restraint Front Side Door Side Impact Sensor Replacement

Callout

Component Name

Warning:When performing service on or near the SIR components or theSIR wiring, the SIR system must be disabled. Refer to SIR Disablingand Enabling . Failure to observe the correct procedure could causedeployment of the SIR components, personal injury, or unnecessarySIR system repairs.

Warning:Do not strike or jolt the inflatable restraint side impactsensor (SIS). Before applying power to the SIS make sure that it issecurely fastened. Failure to observe the correct installationprocedures could cause SIR deployment, personal injury, orunnecessary SIR system repairs.

Preliminary ProceduresDisable the supplemental inflatable restraint (SIR) system.Refer toSIR Disabling and Enabling.Remove the front side door trim panel. Refer toFront Side Door Trim Panel Replacement.

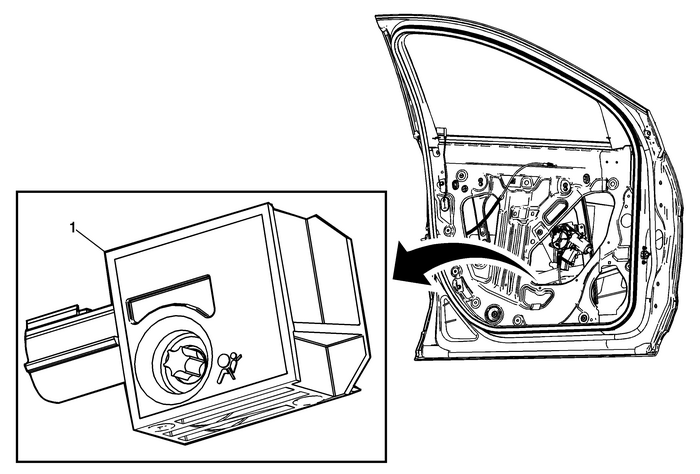

1

Inflatable Restraint Side Impact Sensor Assembly

Caution:Refer toFastener Caution.

ProcedureLoosen the fastener and slide the sensor out of the keyholeslot.The bolt is integral to the sensor assembly, DO NOT removeseparately.

Tip:The sensor is located on the inside of the front door innerpanel.

Tighten

7.5-Y(66-lb-in)
