Front Side Door Garnish Molding Replacement Trim Panels/Welts

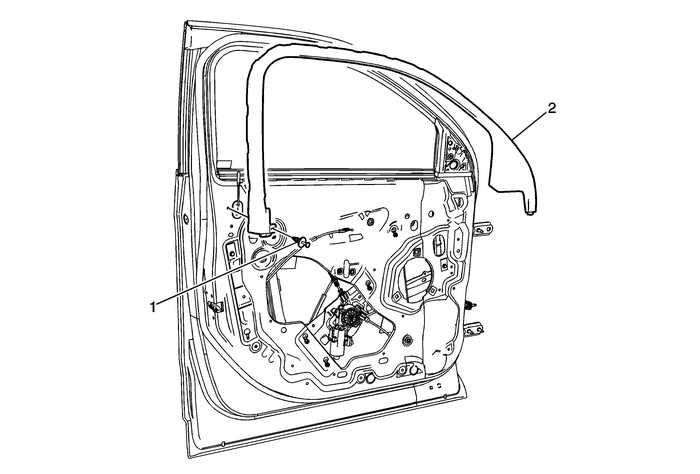

Front Side Door Garnish Molding Replacement

Callout

Component Name

Preliminary Procedure

Remove the front side door trim panel. Refer toFront Side Door Trim Panel Replacement.

1

Front Side Door Garnish Molding Retainer

Procedure

Use a door trim panel removal tool or equivalent to aid inthe removal of the retainers.

2

Front Side Door Garnish Molding

Procedure

Pull outward starting at the front and moving slowly rearwardto remove the molding.
