Air Cleaner Outlet Duct Replacement Intake and Forced Induction Air Filter Assembly

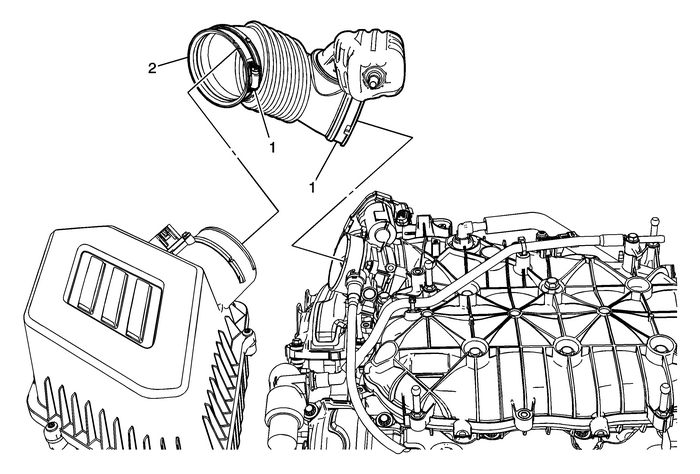

Air Cleaner Outlet Duct Replacement

Callout

Component Name

Preliminary Procedure

Disconnect the front positive crankcase ventilation tube.Refer toPositive Crankcase Ventilation Tube Replacement - Front.

Air Cleaner Clamp (Qty: 2)

Caution:Refer toFastener Caution.

Tighten

4-Y(35-lb-in)

Air Cleaner Outlet Duct

Air Cleaner Element Replacement Intake and Forced Induction Air Filter Assembly Air Filter Element

Air Cleaner Element ReplacementCalloutComponent NamePreliminary ProcedureDisconnect the air cleaner outlet duct from the air cleaner.Refer toAir Cleaner Outlet Duct Replacement.1Air Cleaner Fastener ( ...

Air Cleaner Outlet Duct Replacement Intake and Forced Induction Air Filter Assembly

Air Cleaner Outlet Duct ReplacementCalloutComponent NamePreliminary ProcedureDisconnect the PCV valve from the resonator. Refer toPositive Crankcase Ventilation Hose/Pipe/Tube Replacement.1Resonator C ...
