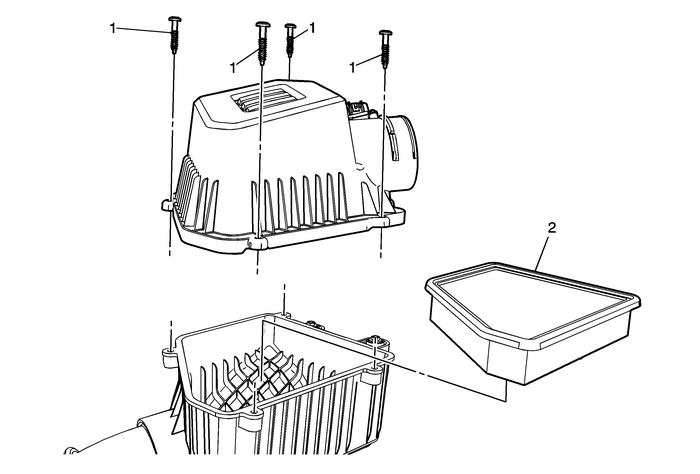

Air Cleaner Element Replacement

Callout

Component Name

Preliminary Procedure

Disconnect the air cleaner outlet duct from the air cleaner.Refer toAir Cleaner Outlet Duct Replacement.

Air Cleaner Fastener (Qty: 4)

Caution:Refer toFastener Caution.

Tighten

2-Y(18-lb-in)

Air Cleaner Element

ProcedureDisconnect the mass airflow with intake air temperaturesensor.Disconnect the throttle inlet absolute pressuresensor.

Air Cleaner Element Replacement Intake and Forced Induction Air Filter Assembly Air Filter Element

Air Cleaner Element ReplacementCalloutComponent NamePreliminary ProcedureDisconnect the air cleaner outlet duct from the air cleaner.Refer toAir Cleaner Outlet Duct Replacement.1Air Cleaner Fastener ( ...

Air Cleaner Outlet Duct Replacement Intake and Forced Induction Air Filter Assembly

Air Cleaner Outlet Duct ReplacementCalloutComponent NamePreliminary ProcedureDisconnect the front positive crankcase ventilation tube.Refer toPositive Crankcase Ventilation Tube Replacement - Front.1A ...
