Windshield Defroster Duct Replacement

Windshield Defroster Duct Replacement

Callout

Component Name

Preliminary Procedure

Remove the instrument panel lower trim panel retainer. RefertoLower Trim Pad Retainer Replacement.

1

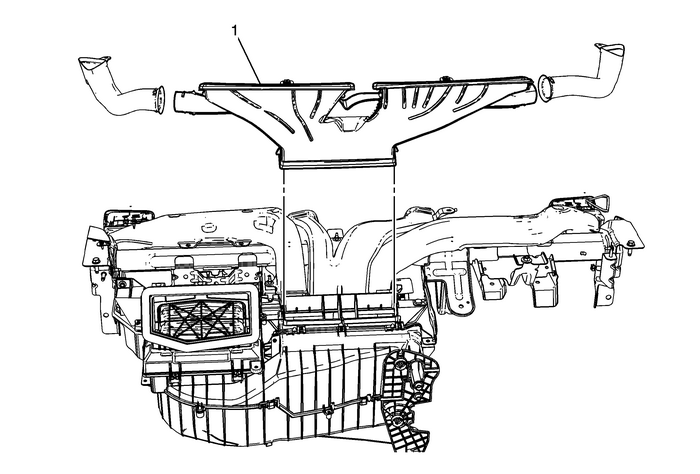

Remove Windsheild Defroster Duct

Vent Valve Replacement
Vent Valve ReplacementCalloutComponent NamePreliminary ProceduresRemove the HVAC module. Refer toHeater and Air Conditioning Evaporator and Blower Module Removal and Installation.Disconnect all the el ...
