Vent Valve Replacement

Vent Valve Replacement

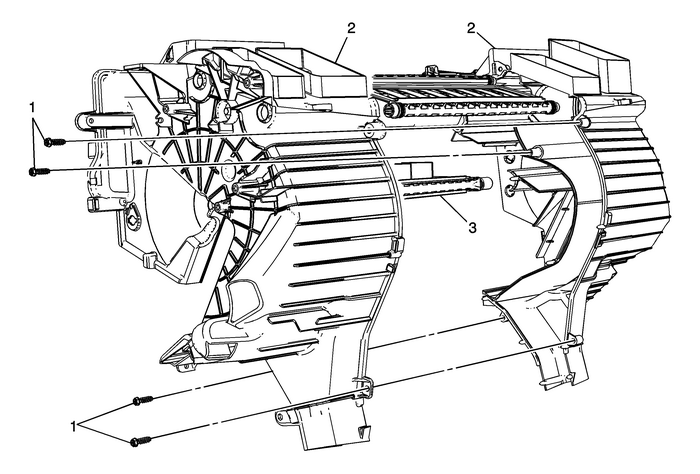

Callout

Component Name

Preliminary ProceduresRemove the HVAC module. Refer toHeater and Air Conditioning Evaporator and Blower Module Removal and Installation.Disconnect all the electrical connectors from componentsassociated with the HVAC module.Remove any components associated with splitting the airdistribution case.

1

Distribution Case Fastener (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

1.5-Y-(13-lb-in)

2

Distribution Case

3

Vent Valve

Flushing
Special ToolsJ 41447 R-134A A/C Tracer Dye – Box of 24J 42220 Universal 12V Leak Detection LampJ 43600 ACR 2000 Air Conditioning Service CenterJ 45268 A/C Flushing Adapter KitNote:Flushing with the ...
